Outdoor Stadium Perimeter LED Screen for Sports Events 1600X900mm
Emergency Passage Design
The LED display cabinet is capable of horizontal rotation. In the event of an emergency, the rotating LED panel can be opened to create a gap in the stadium screen, providing an emergency passage for players or spectators to enter or exit the stadium. This feature ensures a safe and efficient evacuation process during critical situations.
More Reliable Design

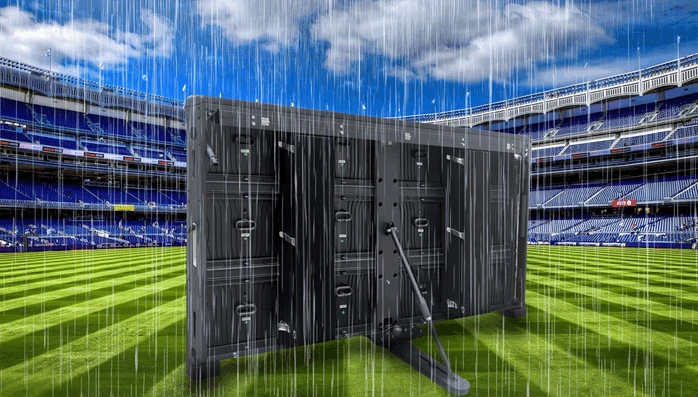

An extendable front support bracket provides reinforced structural stability against strong winds. Even if blown down in severe storms, the IP66-rated enclosure prevents water ingress and protects internal electronics. Engineered with full-aluminum cabinets and power boxes for high-efficiency heat dissipation, the system operates reliably under extreme Middle Eastern heat up to 60°C.
Fast installation, Saving Time and Effort

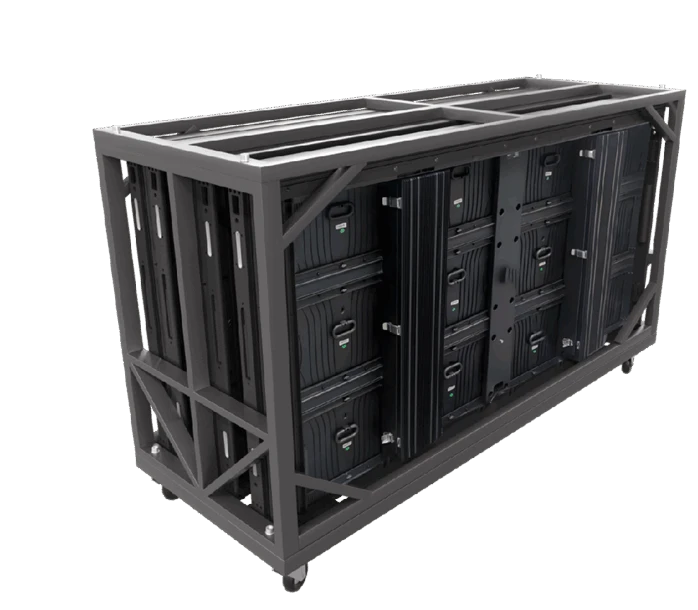

Featuring an extended 1.6m panel length—significantly wider than standard 0.96m cabinets—the system drastically cuts setup time. Ergonomic handles reduce physical strain during transport, while heavy-duty, high-grade aluminum dollies replace traditional flight cases for superior durability. Designed with a lightweight frame and anti-shock suspension structure, these carts ensure smooth, effortless maneuvering and screen protection even over uneven terrain.
UEFA/FIFA Standard
Our SS1 MAX features a well-designed cabinet with front and back maintenance capabilities. Additionally, module replacement can be completed in less than a minute, allowing for quick resolution of any emergencies that may arise during gameplay due to malfunctioning modules. Furthermore, the hard pin connection design of the SS1 MAX series modules provides increased stability compared to conventional soft ribbon cable connection designs.
Never Blackout
Engineered with N+1 backup for both power and signal systems, the display guarantees uninterrupted operation even if a power unit or receiving card fails. Featuring an AC 110V–220V wide-voltage input, it integrates seamlessly into global power grids. The system meets international quality and safety standards, certified by CE, RoHS, ETL, CB, and CCC.
More Secure
Featuring an advanced control system, the panel stores default graphics internally to maintain display output during a complete data link failure. Hot-swappable cabinets automatically retain existing calibration data, including color and brightness settings, upon replacement. Additionally, each panel includes an independent circuit breaker to prevent electrical overloads, safeguarding both the equipment and personnel on the field.
Better visual effect
With a 7,680Hz ultra-high refresh rate and 16-bit grayscale, the led screen delivers flicker-free, vibrant visuals for both live audiences and camera broadcasting. Its precision-engineered cabinet alignment ensures edge-to-edge uniformity, creating a flawless, continuous display surface across the entire perimeter.

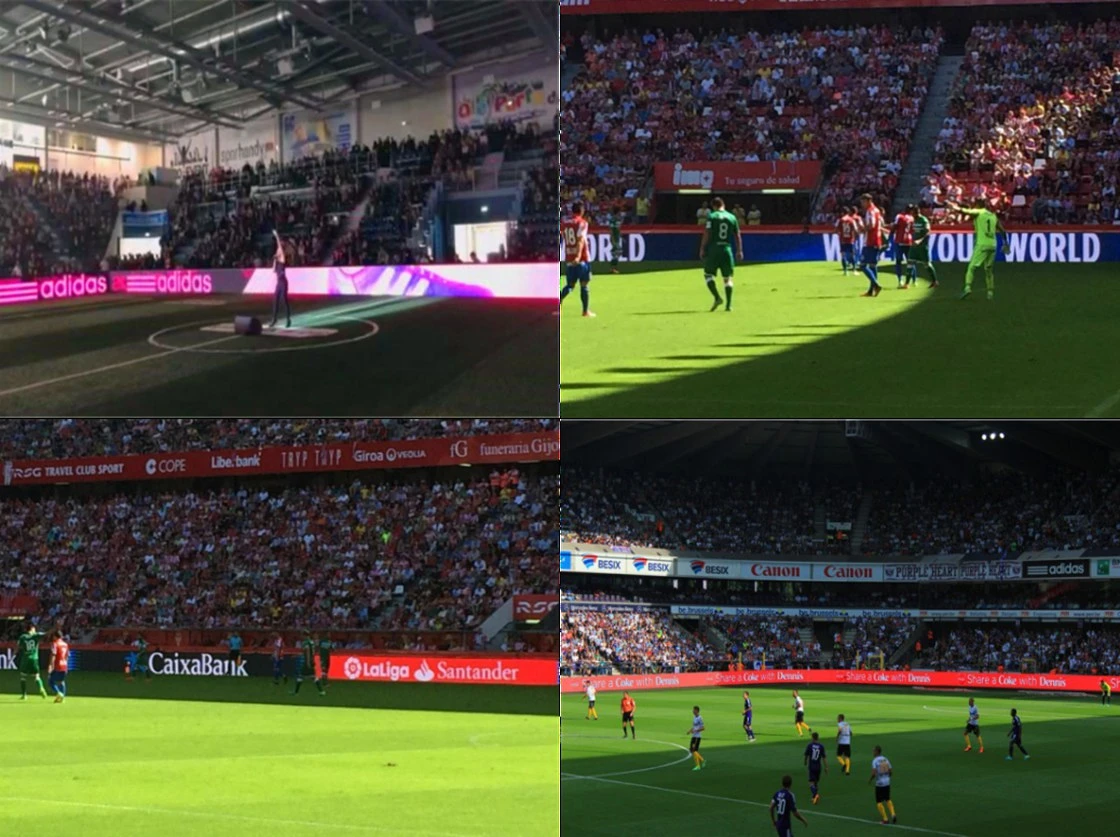

Application Fields

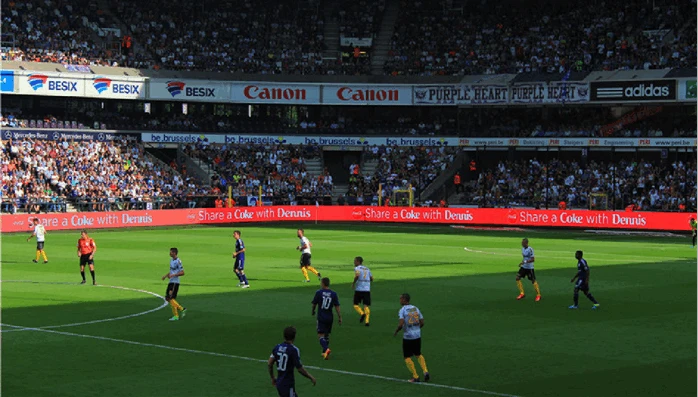

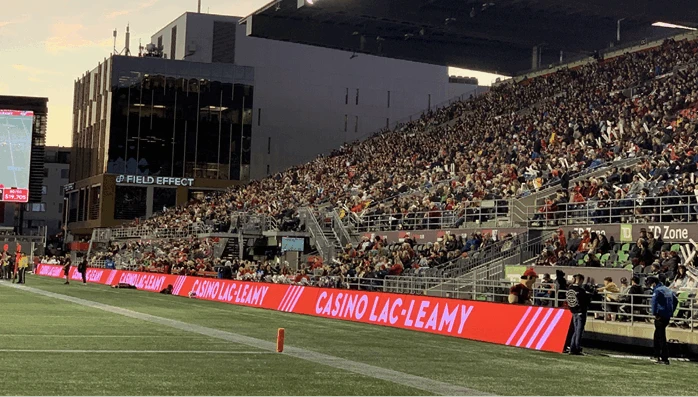

Perimeter Advertising Banner: Delivers high-impact brand exposure along the field sidelines.
Integrated Scoreboard System: Displays real-time match scores, timer countdowns, and game statistics.
Live Broadcast & Replay Screen: Streams crystal-clear live video feeds and instant replays for dynamic spectator engagement.
