Transparent led display
Transparent LED screens have become increasingly popular in recent years, thanks to their unique ability to display high-quality images and videos while remaining virtually invisible. These screens, which are made up of transparent materials and LED lights, are being used in a wide range of applications, from advertising and entertainment to retail and hospitality. With their ability to blend seamlessly into any environment, transparent LED screens have revolutionised the way businesses and organisations communicate with their audiences. Let’s explore the many benefits of transparent LED screens, and how they can be used to create stunning visual displays that capture attention and leave a lasting impression.Straight / curve
Transparency led screen:

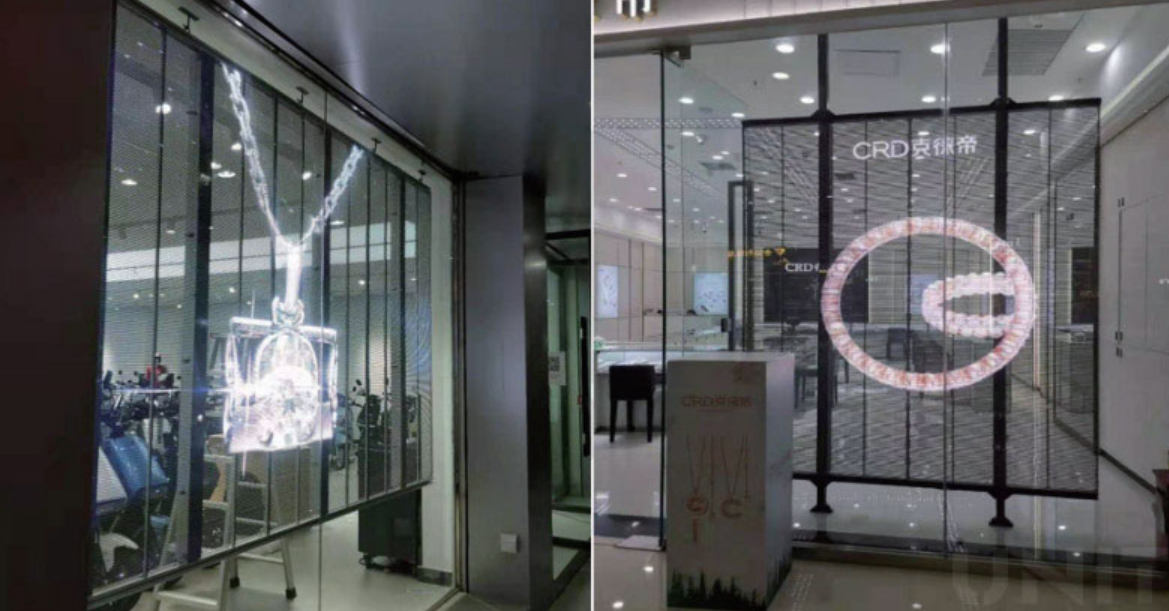

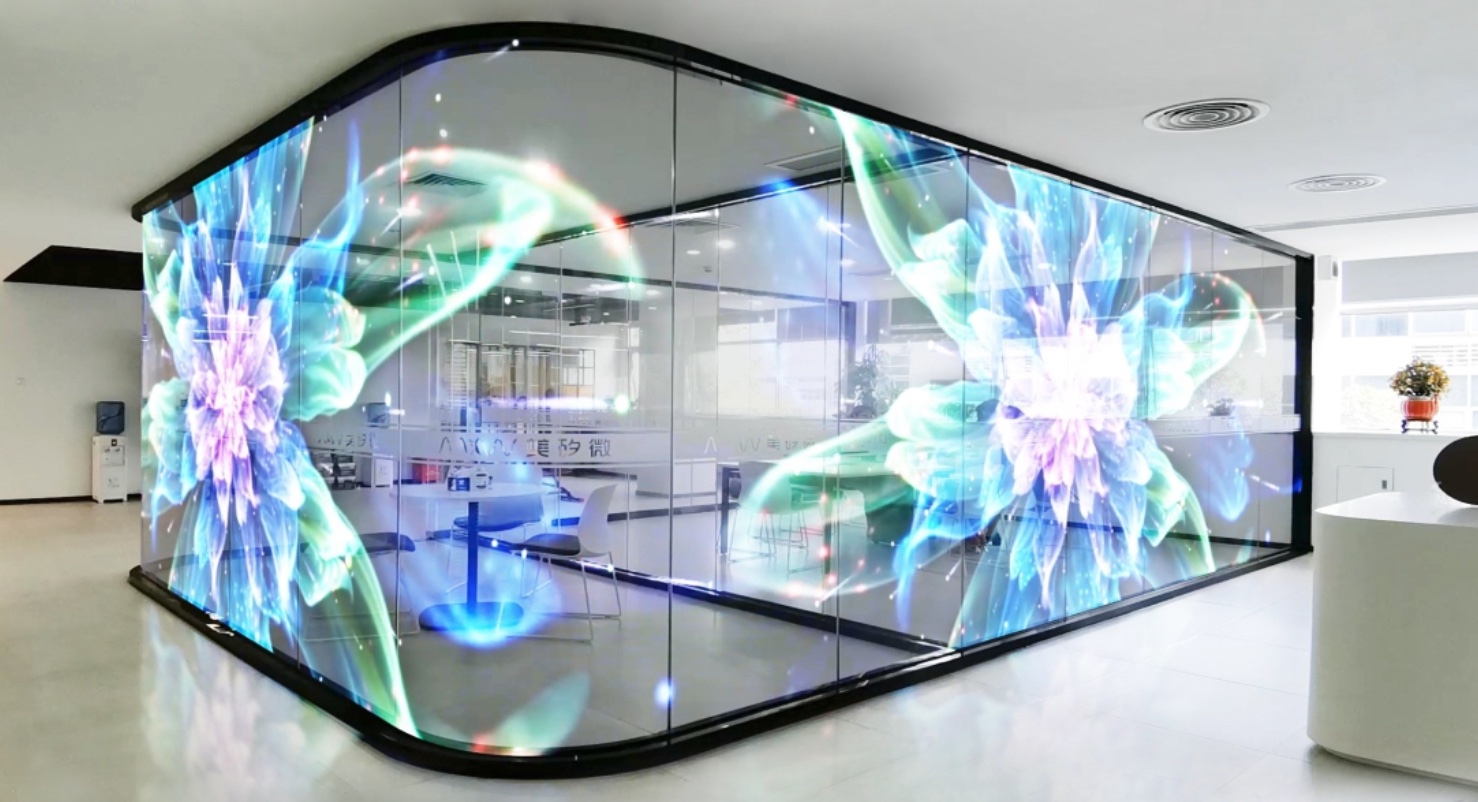

Our ultra Clear high transparency video screens achieve a permeability of up to 80% and can even be mounted curved glass as seen above. Seamless mounting with no visible structural skeleton ensures a clean insulation. This industry leading technology provides the highest possible brightness that is viewable in ever the brightest business spaces or exterior commercial windows. Glass installation with a hight of 2.4m can be archived without any visible structure and an unlimited screen width is possible!

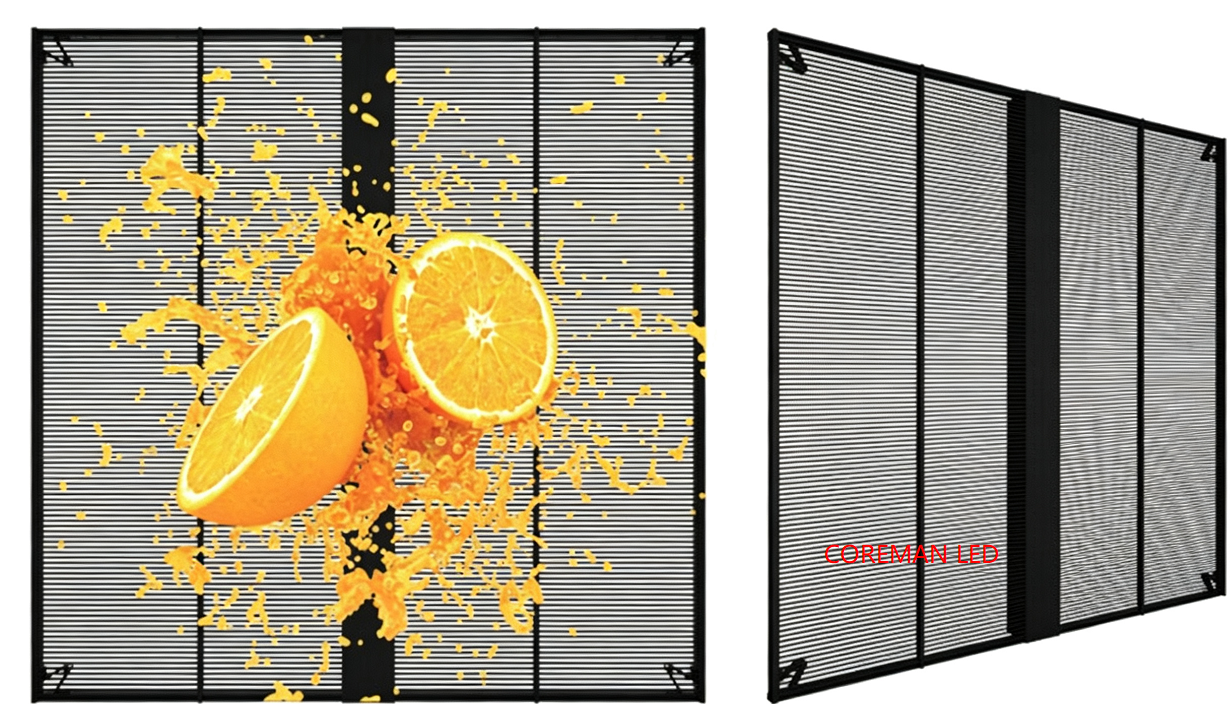

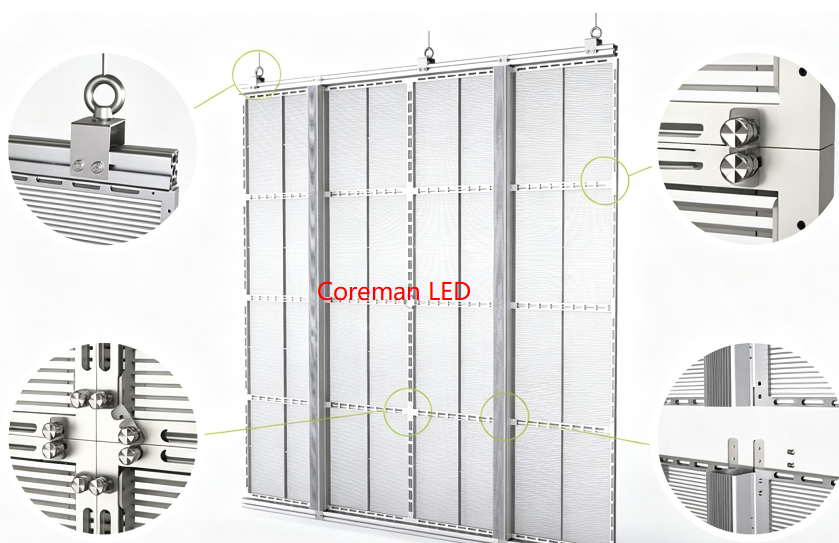

Transparent led display cabinet:
Transparent LED displays rely on an innovative hollow-out structural design paired with side-emitting or micro-SMT LED technology. By minimizing the width of the individual PCB light strips and maximizing the open spacing between rows, the system achieves an impressive light transmittance rate—frequently between 70% and 80%—without sacrificing color vibrancy or image clarity.
In addition, high-efficiency driver ICs and ambient brightness adaptation ensure that the display outputs high-contrast, daylight-readable visuals. When viewed from a standard distance, the ultra-narrow cabinet framework and ultra-thin wiring fade into the background, creating a floating, holographic visual effect while leaving indoor natural light completely uninhibited.

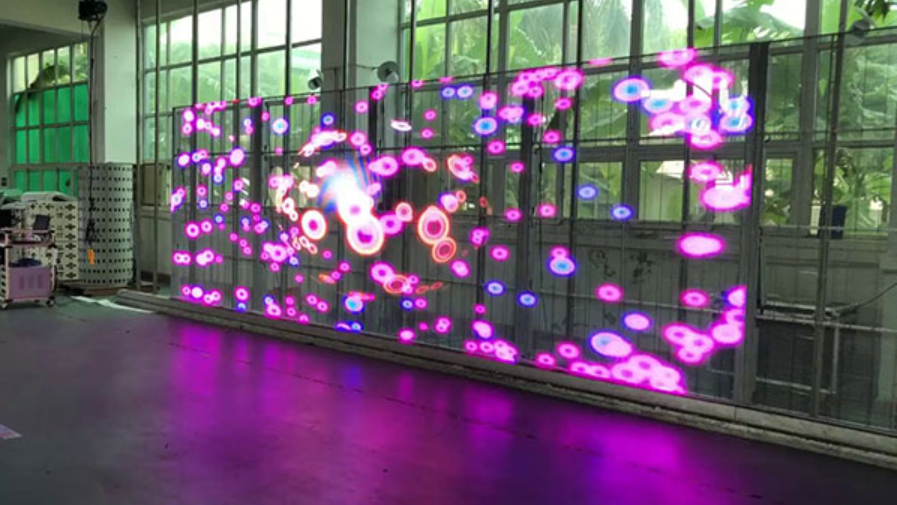

Transparent led wall :

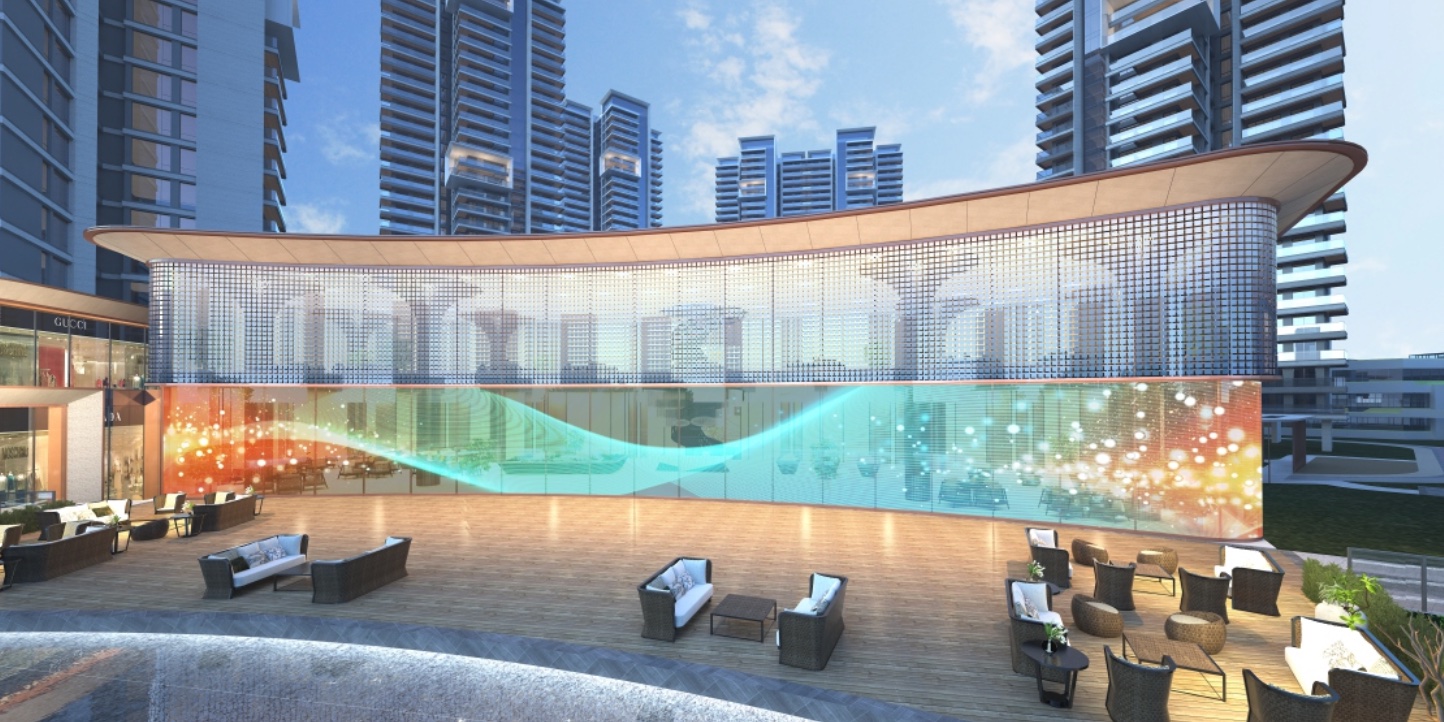

The outdoor Transparent LED display is based on the use of LED strips that form the curtain. This can be attributed to the separation between the panels which allows the passage of light and provides greater visibility. This is the most widely used basic option due to its simplicity and robustness, while achieving spectacular effects. You can see this in the screen supplied and installed by Coreman LED in a wide range of places, from Asia to other continents of the world.
Modular Design & Support Customize
Wide Range of Applications

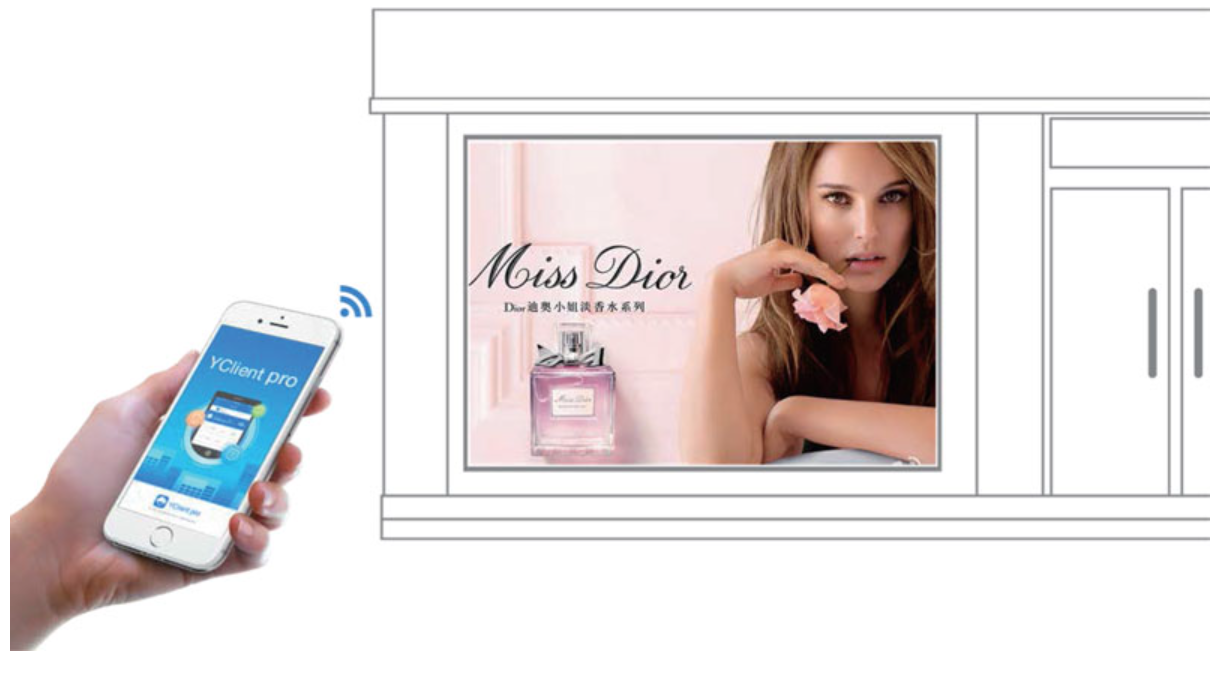

Mobile App Screen Control /Computer
Specifications:
| Pixel Pitch Horizontally | 2.84mm | 2.84mm | 3.91mm | 3.91mm |
| Pixel Pitch Vertically | 5.68mm | 5.68mm | 7.8125mm | 7.8125mm |
| Panel Resolution | 352 * 88 pixels | 352 * 88 pixels | 256 * 64 pixels | 256 * 64 pixels |
| LED Encapsulation | SMD2020 | SMD1921 | SMD2020 | SMD1921 |
| Pixel Density/sqm | 61,952 | 61,952 | 32,768 | 32,768 |
| Brightness | 1000nits | 5,000nits | 1000nits | 5,000nits |
| Color Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing Angle (H/V) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Max. Power/sqm | 500W | 750W | 500W | 750W |
| Aver. Power/sqm | 200W | 250W | 200W | 250W |
| Panel Size | 1000mm W × 1000m H | 1000mm W × 1000m H | 1000mm W × 1000m H | 1000mm W × 1000m H |
| Transparency | >65% | |||
| Weight/sqm | 10KG | |||
| Installation Way | Mounted/Suspending | |||
| Control system | Novastar | |||
| Input Voltage | AC110~220V | |||
| Certification | UL, ETL, CE, Rohs, CCC, EMC | |||
| Working Temperature | -20~+60℃ | |||
| IP Rating | IP65 / IP54 / IP43 | |||
