P8 P10 outdoor led screen fixed installation front service:
High-brightness P8 and P10 outdoor LED screens designed for fixed installation deliver high durability and smooth visual performance in extreme weather conditions. Featuring an advanced front service mechanism, these IP65 waterproof outdoor LED display panels allow quick module, power supply, and receiving card maintenance directly from the front, eliminating the need for rear service corridors. Ideal for commercial advertising billboards, building facade displays, and public signage, the P8/P10 front access LED video wall ensures long-term operational stability, low maintenance costs, and exceptional daytime visibility.
Size：960X960mm / 960x480mm / 960X1280mm

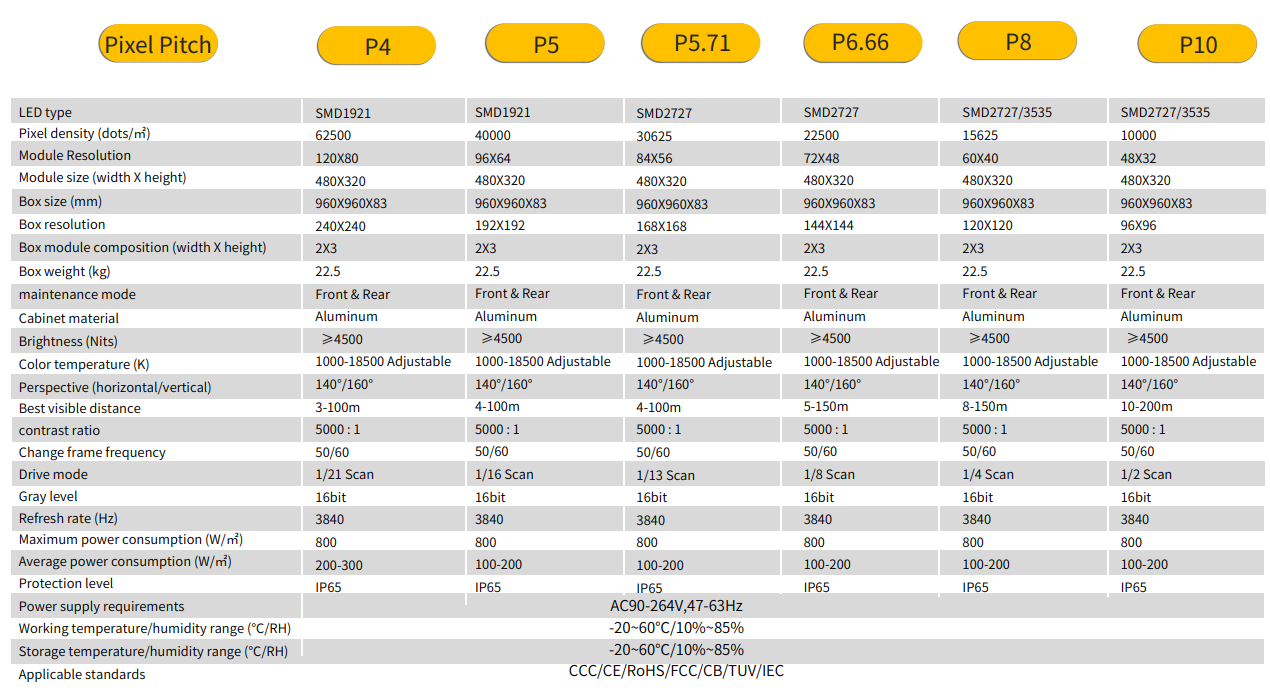

Pixel: P4,P5,P6,P8,P10,P10.42

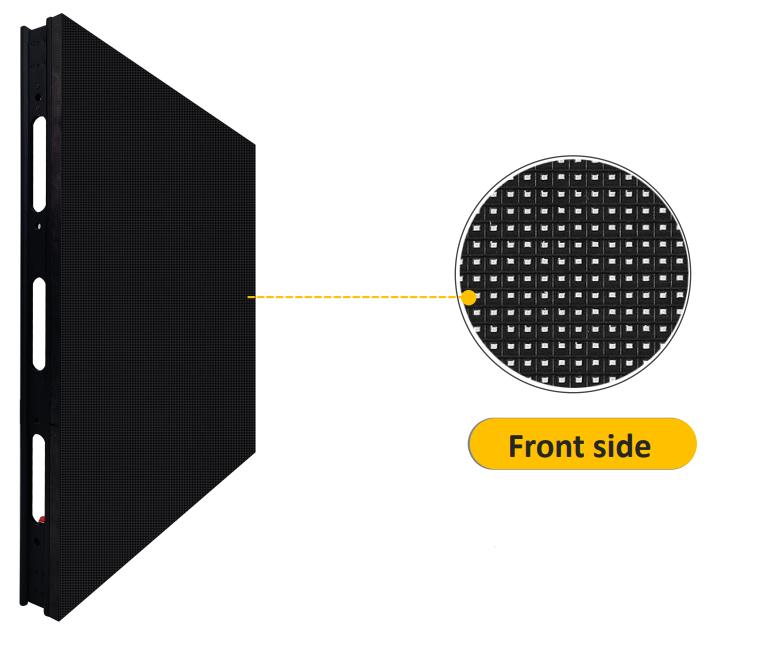

Front Side:
Matte corrugation module mask achieves ultra-high contrast

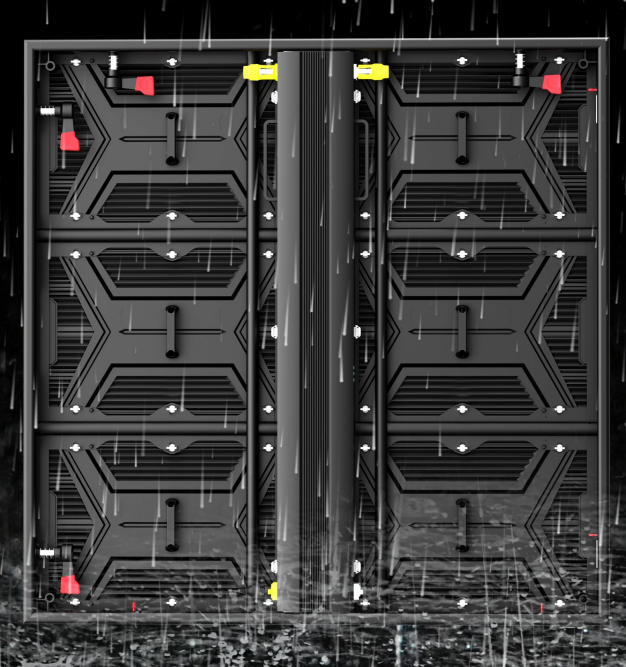

Back Side:
Aluminum profile cabinet is light weight, which saves tranportation cost and installation cost

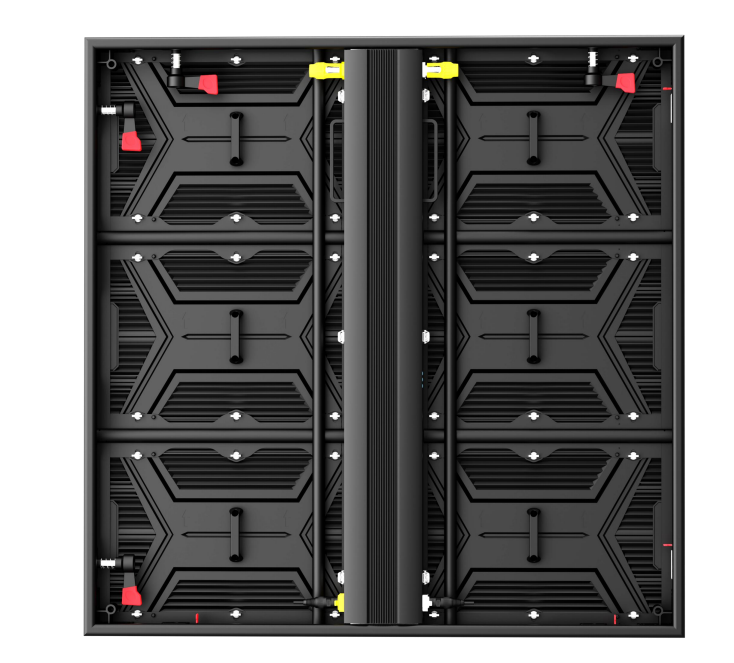

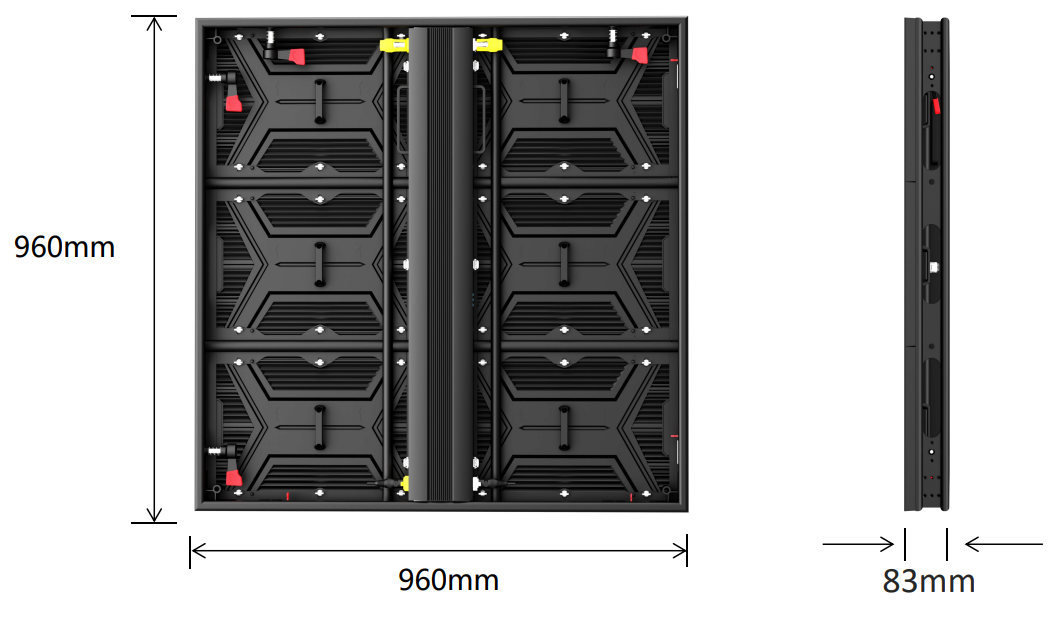

Common size 960X960mm details:
Slim and light weight design

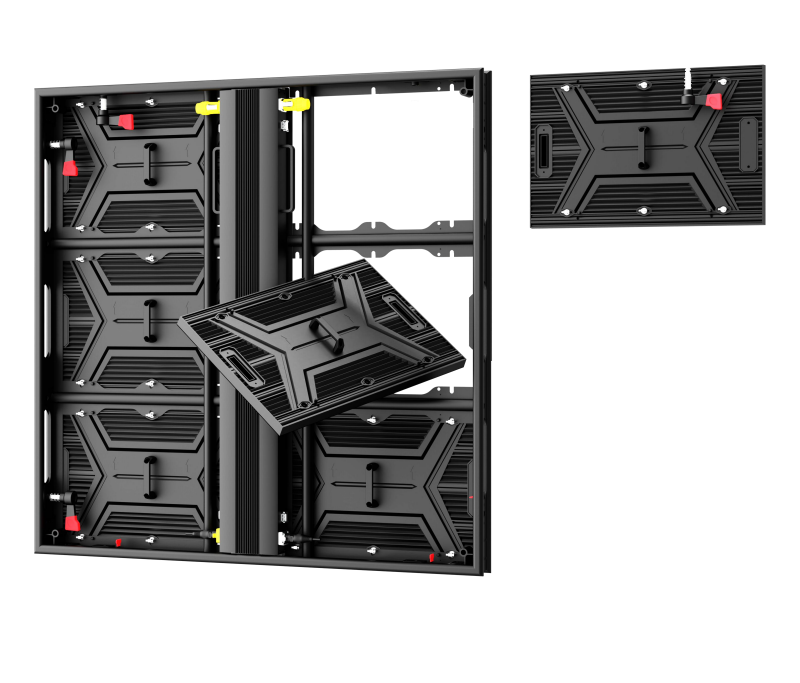

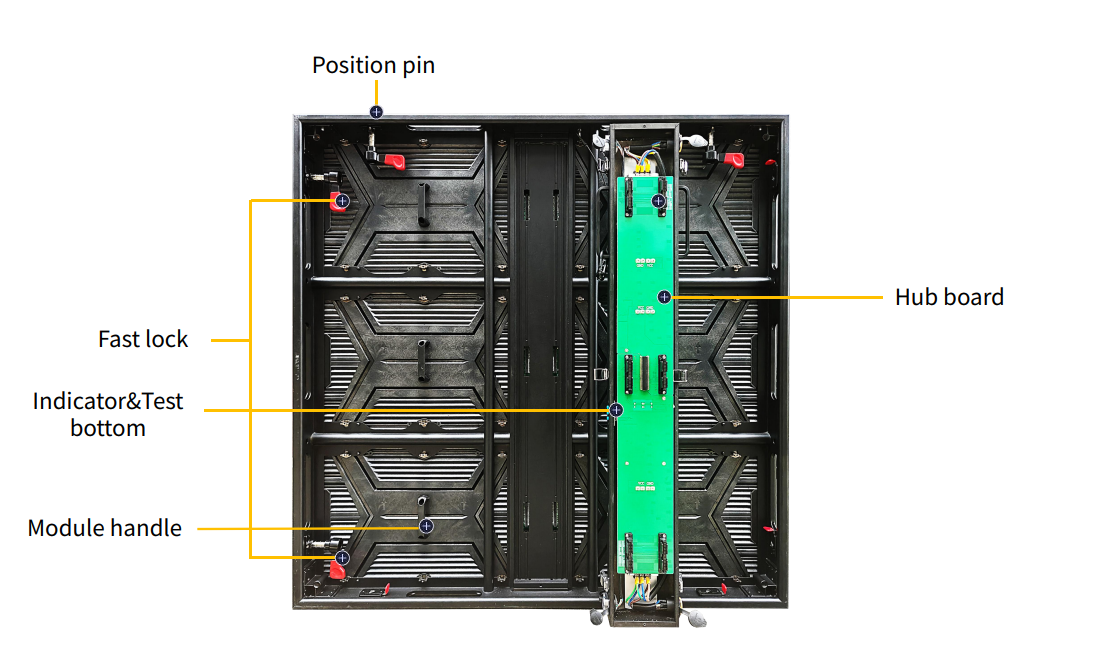

Full-front and Rear maintenance

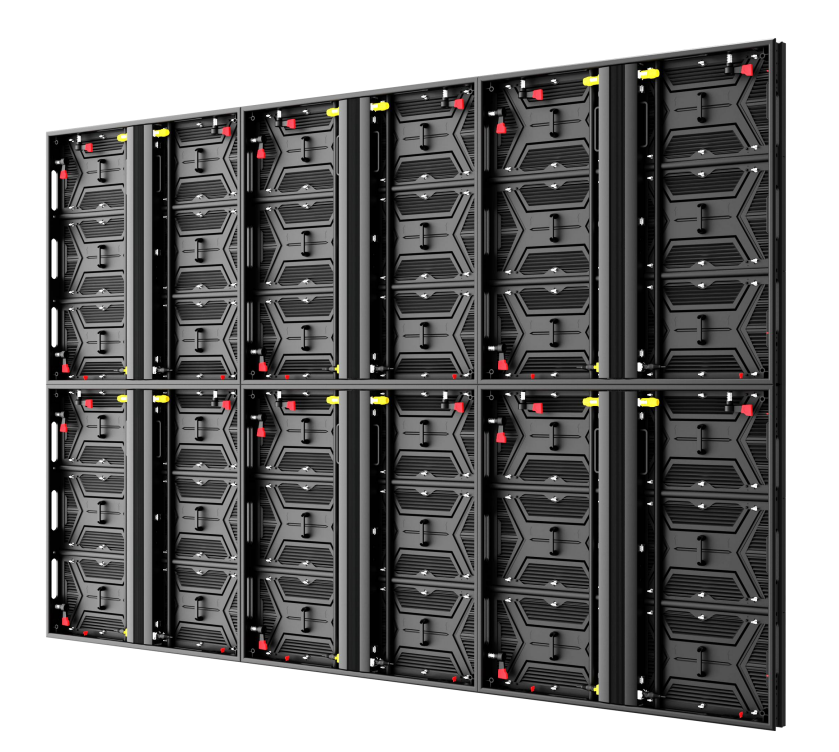

Seamless splicing:
Delicate structure
Seamless splicing
Perfect flatness
IP65 Waterproof for both front and backside

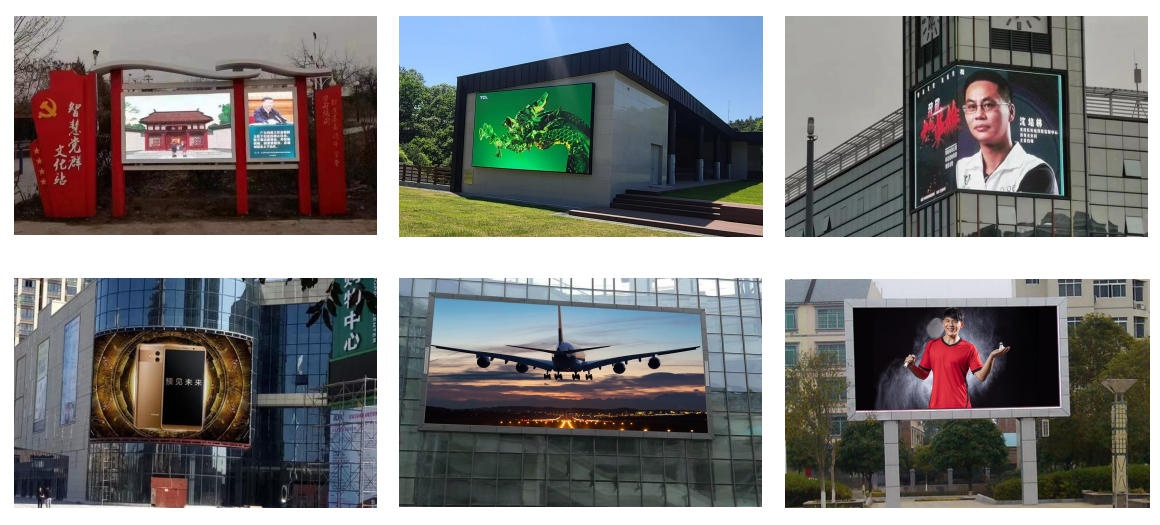

Wide Applciations:
Commercial Advertising Billboards: Installed on building facades, highway structures, and shopping mall exteriors for high-impact brand promotion.
Transportation & Transit Hubs: Deployed at airports, bus stations, train terminals, and highway gantries for real-time traffic updates and public announcements.
Sports Stadiums & Arenas: Positioned as perimeter displays, scoreboards, and live broadcast screens around outdoor sports facilities.
Public Plazas & City Squares: Used for civic information dissemination, cultural events, and outdoor public viewing screens.
Retail & Corporate Architecture: Integrated directly onto glass curtain walls, wall-mounted store fronts, and corporate headquarters where rear maintenance space is unavailable.
