Technical Architecture & Motion Control

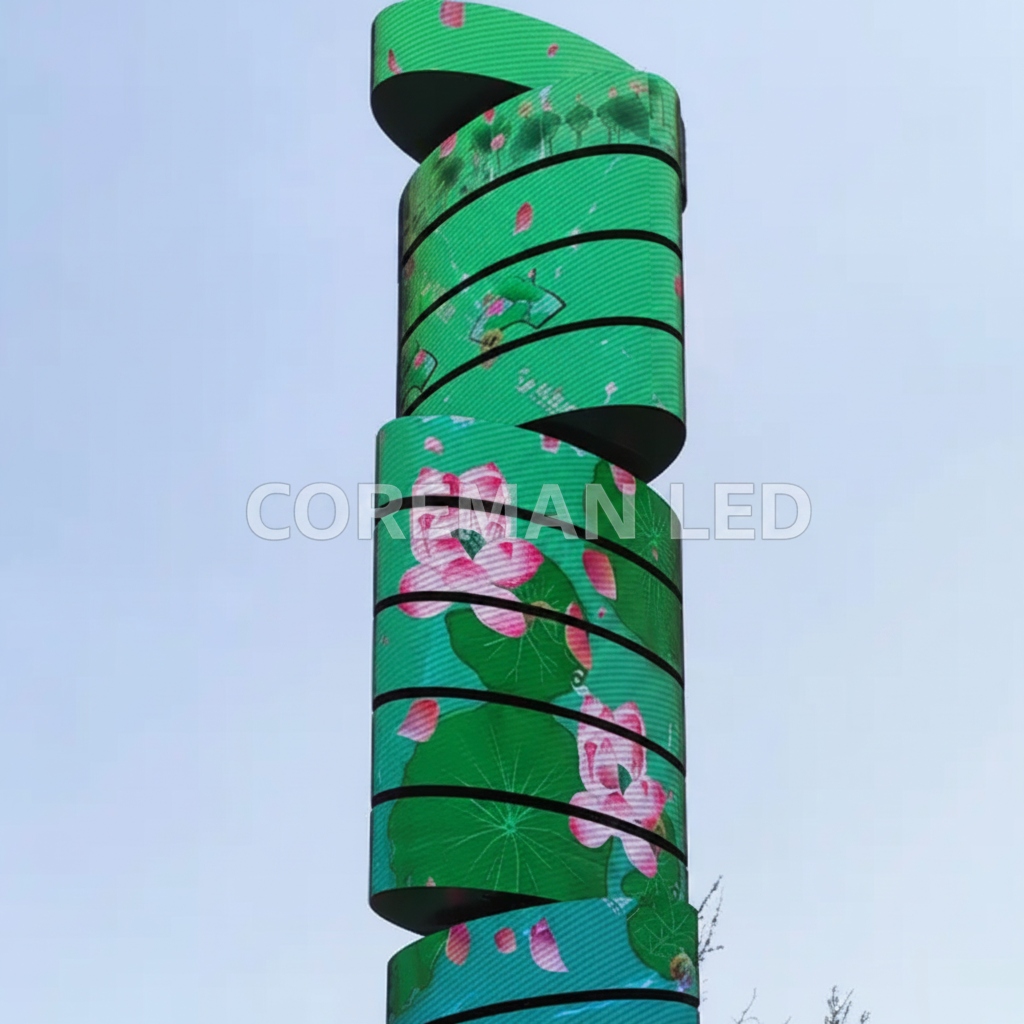

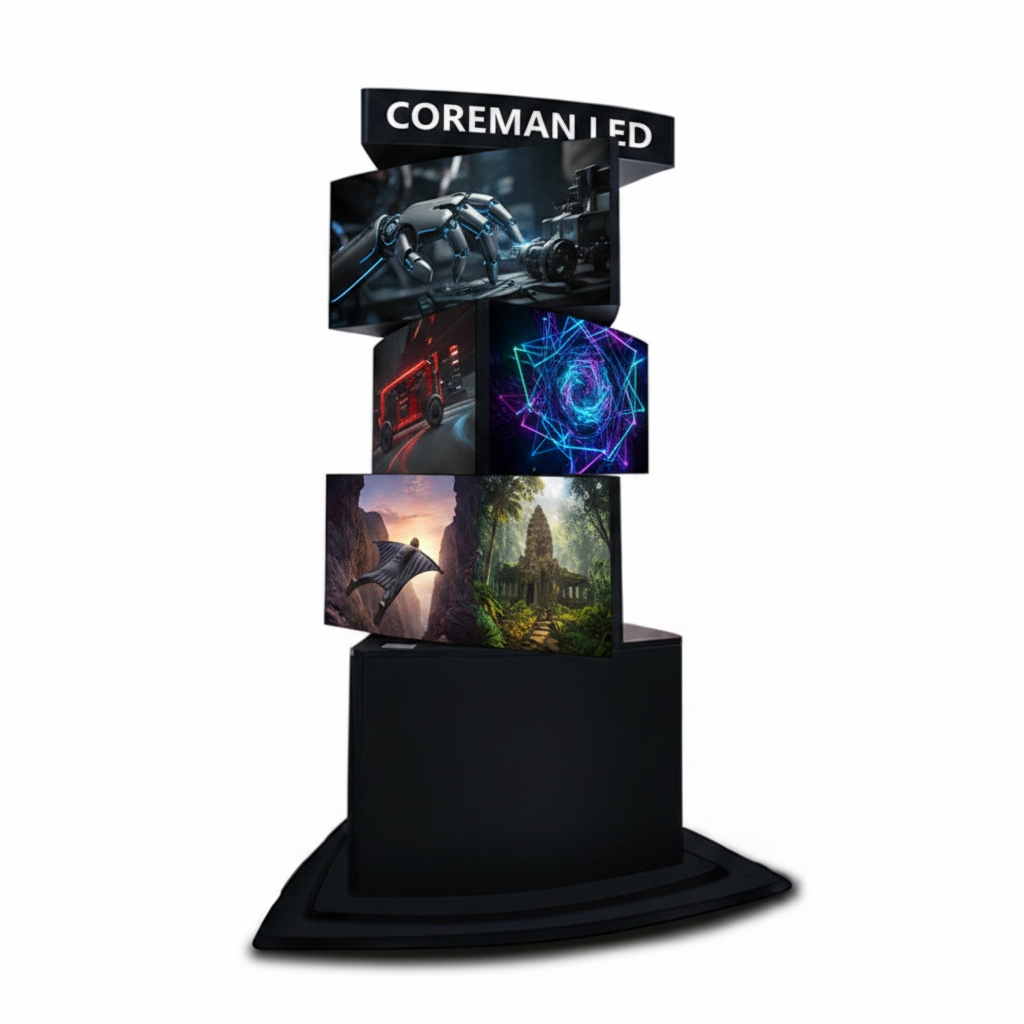

The DNA Rotating LED Screen utilizes a multi-layered vertical axis system to execute synchronized spiral movements. Each LED module is engineered for independent or group rotation, enabling the transition between a standard cylindrical display and a double-helix configuration. Driven by high-precision stepper motors and a dedicated kinetic control software, the system maintains seamless video playback during high-speed mechanical rotation. This hardware is optimized for permanent installations in high-traffic environments, ensuring structural stability and long-term motor reliability.

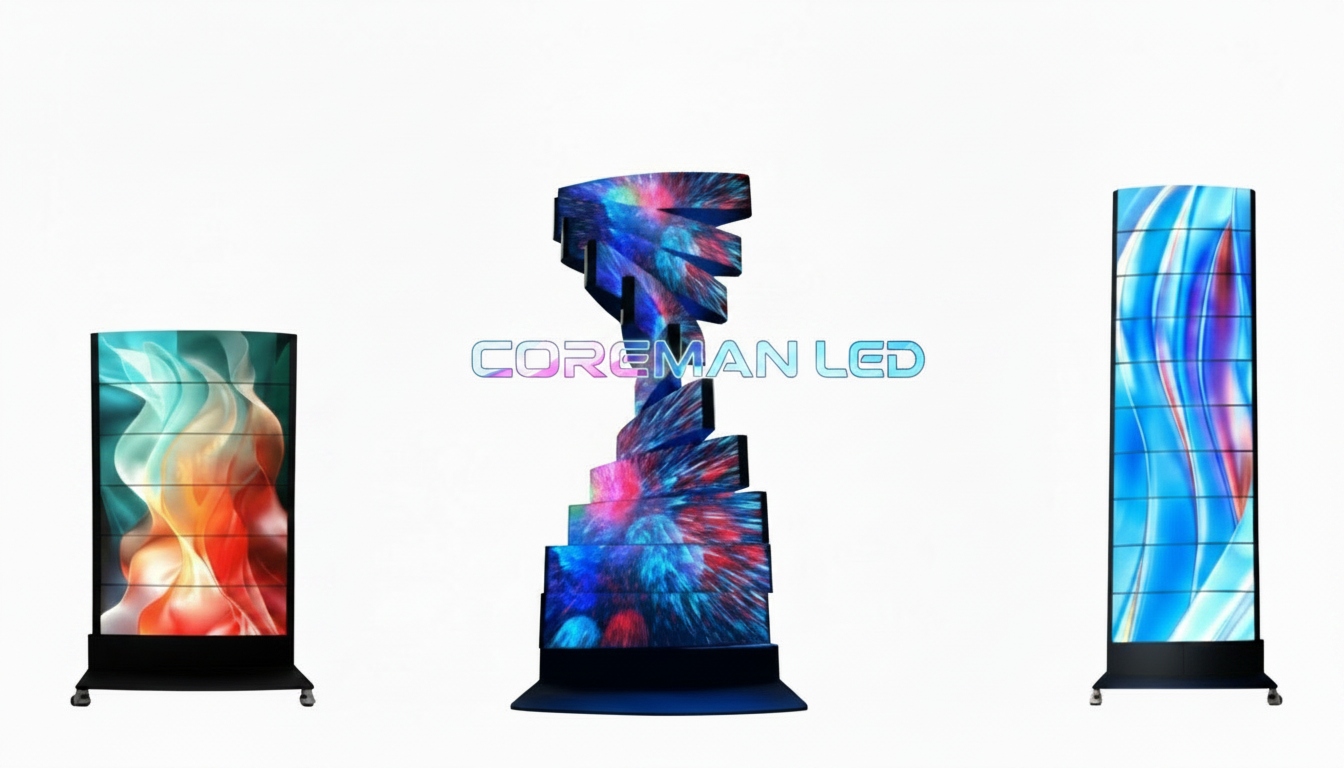

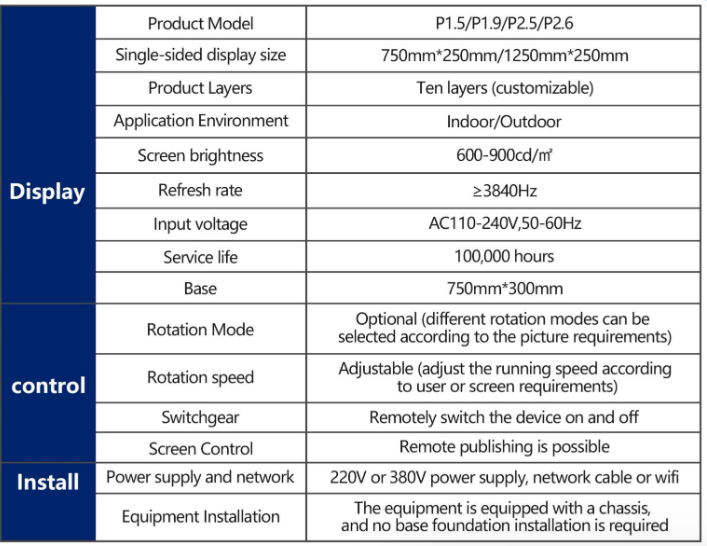

Pixel pitch: 1.2mm, 1.5mm, 1.8mm, 1.9mm, 2mm
Screen model: Double sides flat screen, double sides curved screen, triangular rotating LED screen.
Screen Layers: Two,Three,Four,Five,Six,Seven,Eight,Nine,Ten.
Core Features
360° Infinite Rotation: Supports continuous 24/7 operation with high-load mechanical endurance.
Fully Customizable: Flexible sizing and structure tailored to specific project requirements.

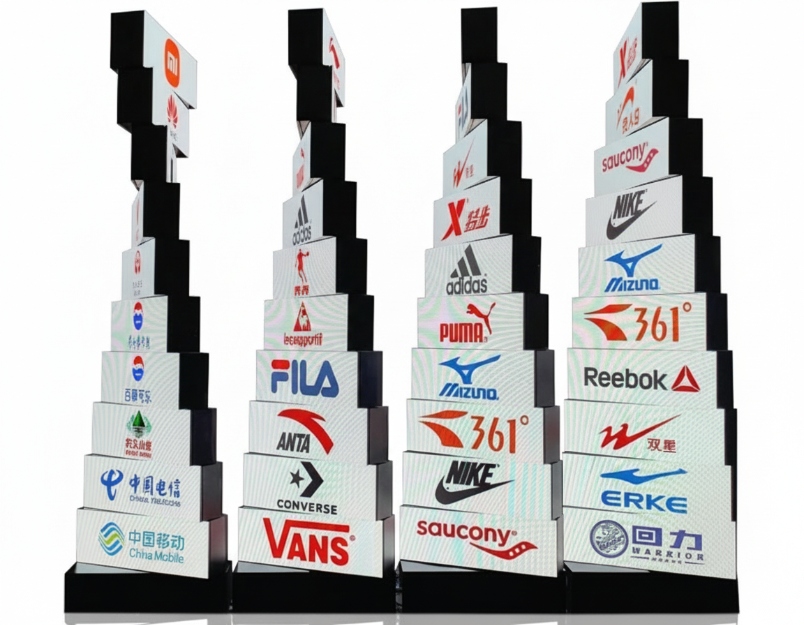

Front-Access Maintenance: Simplified serviceability for LED modules to minimize downtime.
Industrial Stability: Low-noise motor drive ensuring smooth, vibration-free performance.
Precision Control: Seamless synchronization between mechanical motion and video playback.

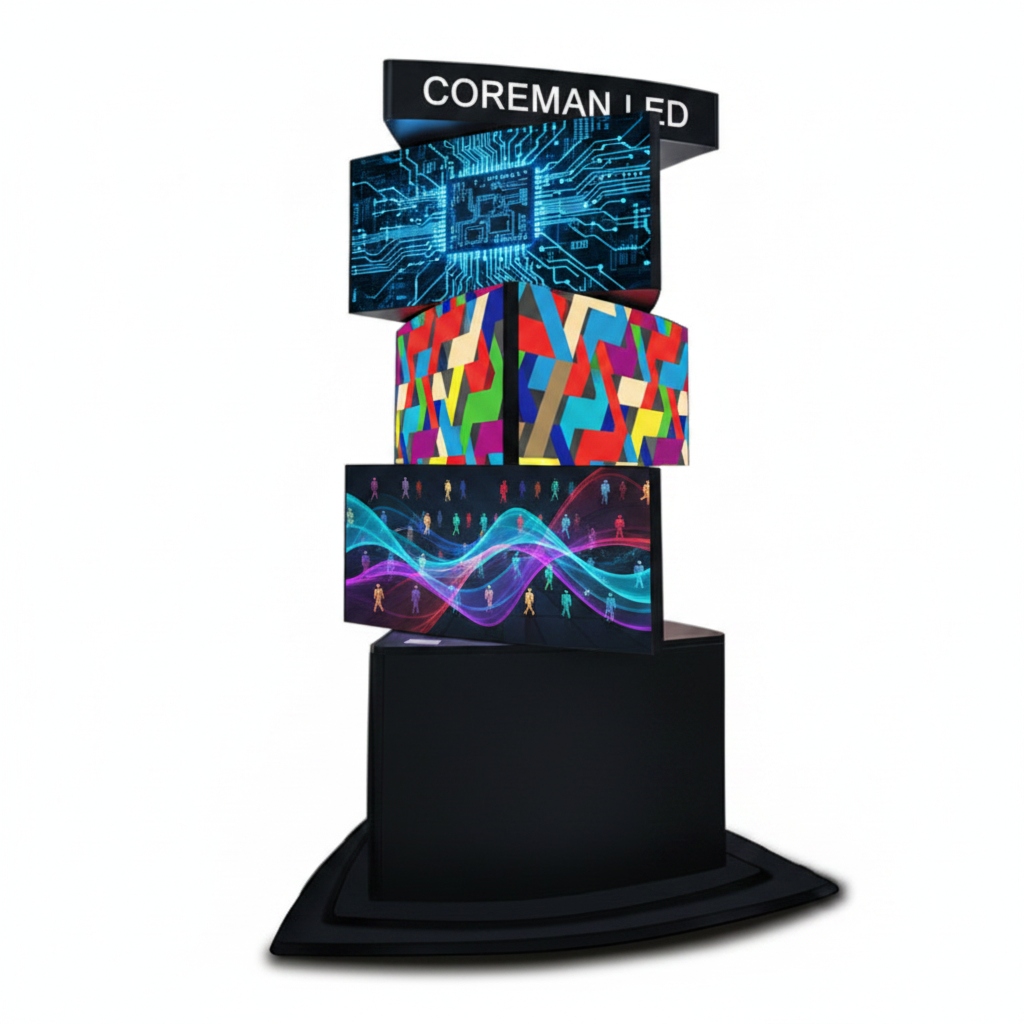

LED three-layer three-sided rotating screen
Single layer independent playback or overall Screen linkage can be achieved
made of multi-layer triangular led columns stacked single or multi-layer rotation can be controlled according to the picture
the led rotating screen not only has a three-sided turning effect, but also has led the effect of the display screen combines the respective advantages of the three-sided flip and led display screens.take it to the extreme. during the day, two car body stickers can be displayed, and at night the other the function is equivalent to that of a conventional led display, and it can play all kinds of video files. supports live tv, etc.

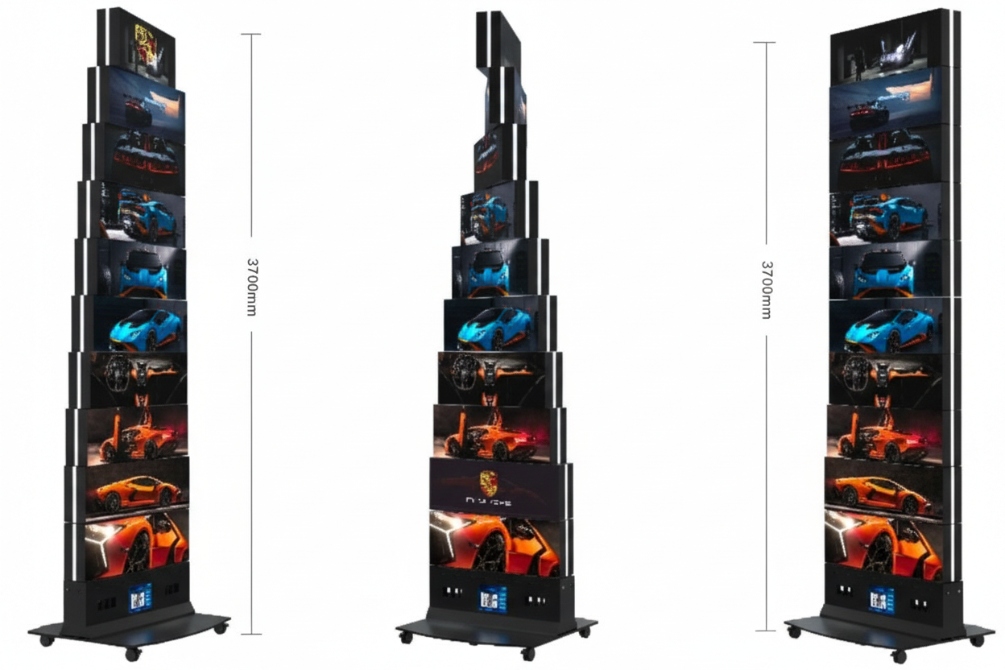

Delta-Wing Rotating Matrix LED Display: Technical Architecture
The Delta-Wing Rotating Matrix consists of high-definition rectangular LED modules mounted on a synchronized mechanical grid. Each unit executes precision axial rotation to transition between a standard flat video wall and a multi-dimensional kinetic array. Driven by industrial-grade stepper motors and real-time motion control software, the system maintains high-refresh-rate video playback during physical movement. This reconfigurable hardware is optimized for high-impact commercial centerpieces and professional stage environments requiring dynamic spatial transformations

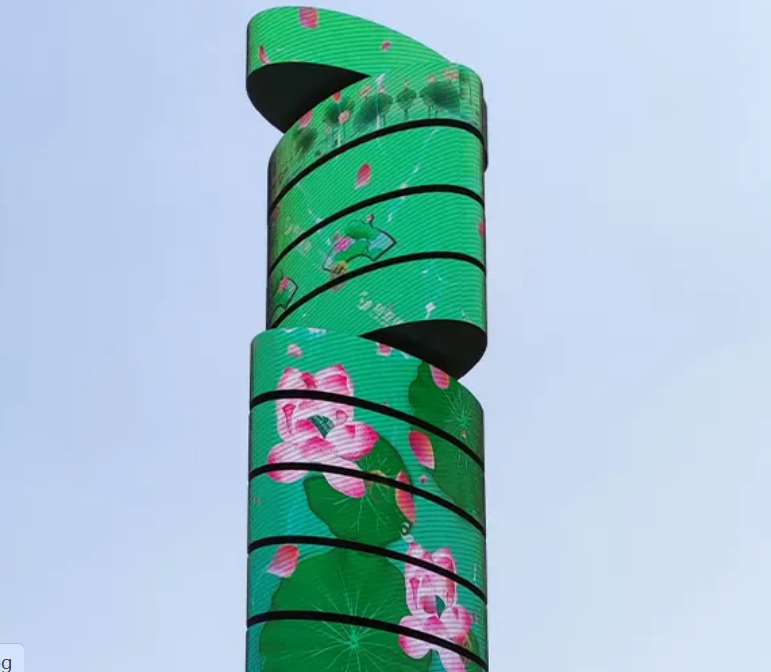

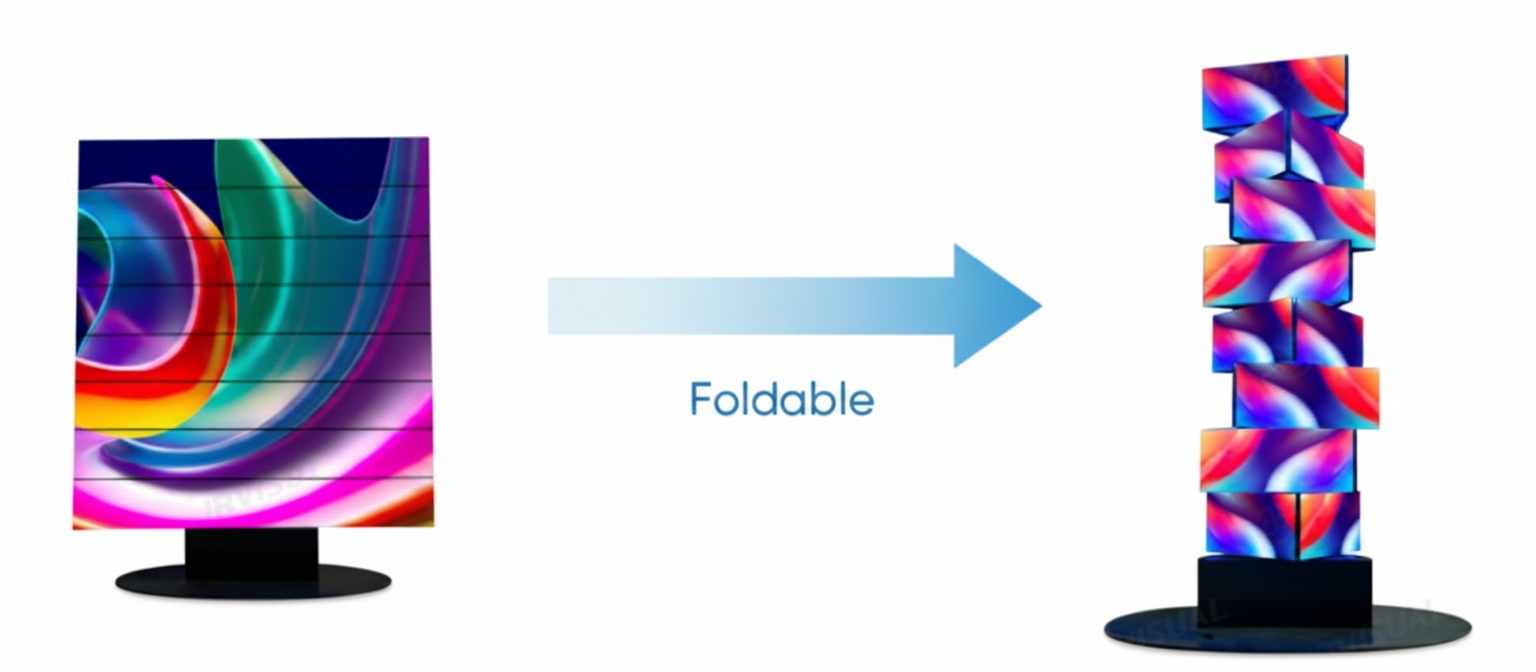

Foldable DNA Rotating LED Display: Mechanical Specification
The Foldable DNA Rotating Series integrates a vertical modular architecture designed for precision articulation. This system utilizes advanced hinge mechanics to execute seamless folding and unfolding transitions while maintaining 360° rotational stability. Engineered for high-end retail and fashion-forward environments, the hardware allows for real-time geometry adjustments and smooth kinematic motion. The robust folding mechanism ensures long-term structural integrity during continuous operation, providing a reconfigurable digital centerpiece with zero-gap visual alignment.
Double-Sided Curved DNA LED Display: Engineering Overview
The Double-Sided Curved DNA series features a dual-surface modular design configured in a synchronized helical structure. This architecture enables simultaneous 360° visual coverage through high-definition curved LED panels integrated with a precision rotation mechanism. Engineered for maximum visibility in high-traffic zones, the system maintains seamless content alignment across both surfaces during mechanical movement. The robust hardware is optimized for continuous operation in exhibition centerpieces and flagship retail installations requiring multi-angle immersive displays
Double-Sided Kinetic DNA LED Display: Technical Integration
The Double-Sided Kinetic DNA Display utilizes a synchronized dual-surface architecture mounted on a motorized helical axis. This configuration enables simultaneous 360° content delivery, ensuring maximum visibility for high-traffic corporate lobbies and exhibition environments. The industrial-grade rotation mechanism maintains high-torque stability and precise alignment during continuous operation. Engineered for high-impact branding, the system combines mechanical motion with high-definition digital playback to deliver a seamless, multi-angle visual experience

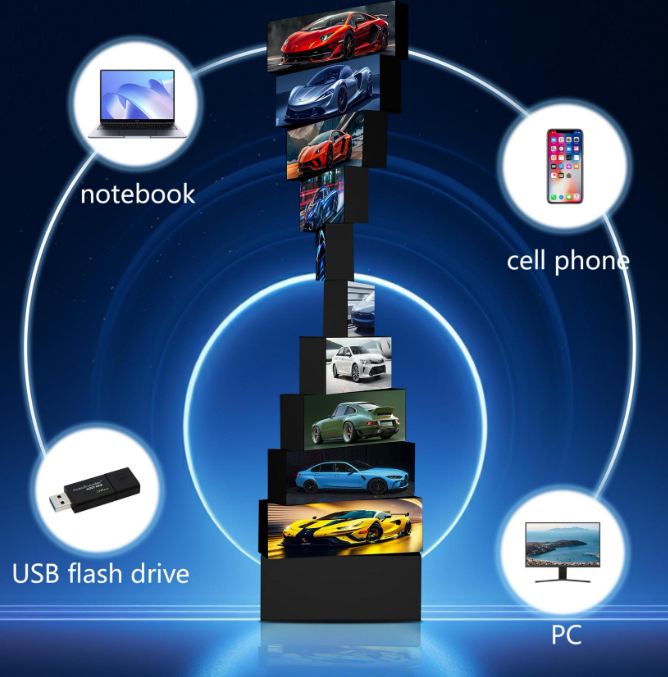

INTELLIGENT CONTROL SYSTEM
It supports wireless control and timed playback functions, is easy to operate, and can realize synchronous display and content management of multiple screens through remote control.
