500×1000mm Indoor Oudoor Interactive LED Floor Display
Transform any ordinary space into an extraordinary, immersive experience with our state-of-the-art 500×1000mm indoor interactive dance floor LED screen. Engineered with highly sensitive smart sensors and a heavy-duty, load-bearing structure, this premium display responds instantly to human movement, creating dazzling visual effects right beneath your feet. Perfect for high-end stages, nightclubs, weddings, and commercial events, its versatile 500×1000mm cabinet design allows for seamless installation and endless configuration possibilities. Elevate your event production and captivate your audience with vivid brightness, wide viewing angles, and unmatched interactive reliability.
Exceptional Load-Bearing Capacity
Engineered to support up to 2,200 kg per square meter, this interactive LED floor delivers unmatched structural integrity through a three-tier reinforcement system:
Heavy-Duty Chassis: Built with a rugged 1.5mm fortified steel cabinet enclosure to prevent warping under intense weight.
Impact-Resistant Mask: Utilizes a multi-layer, subdivided polycarbonate (PC) mask that diffuses point-pressure and resists heavy impacts.

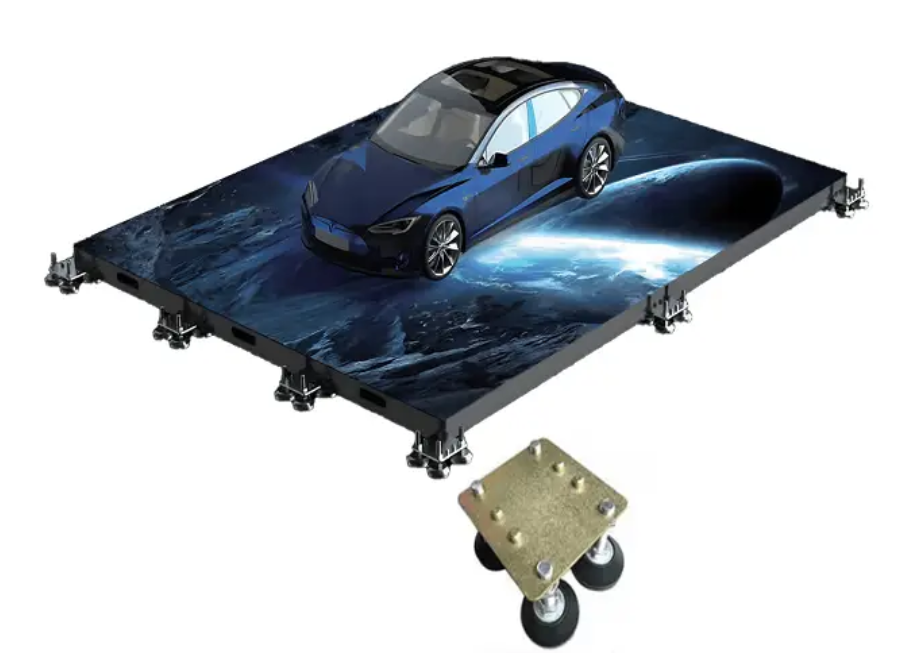

Flexible Leveling Feet: Each panel features 4 heavy-duty adjustable feet (height range: 130mm–170mm) to ensure a perfectly level surface on uneven venues.

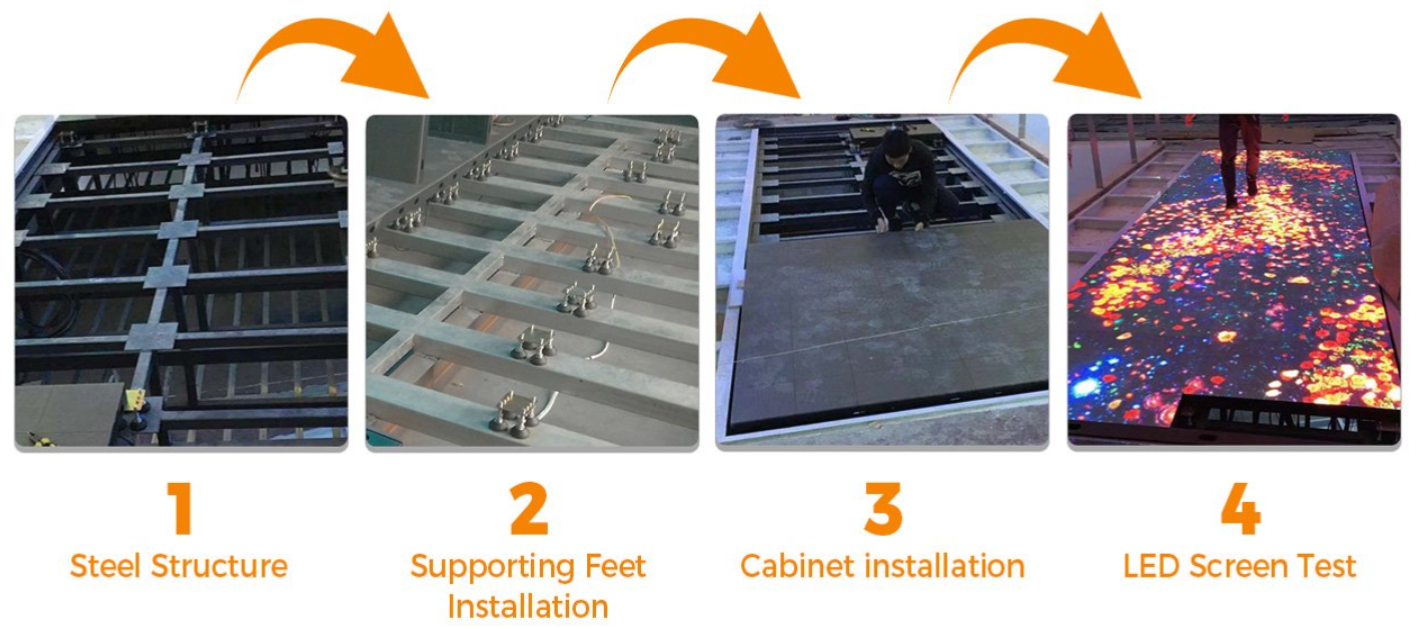

Versatile & Fast Installation
Designed for rapid deployment, this interactive LED floor supports multiple configuration methods to adapt to any venue layout:
Ground Installation: Positioned directly on the floor using the adjustable leveling feet for quick, non-invasive setups.
Embedded Installation: Flushed directly into the floor surface for a sleek, seamless, and trip-free architectural finish.
Steel Frame Structure: Bolted onto custom steel scaffolding to elevate the stage or integrate with existing event trusses.
Rail Track System: Mounted onto guide rails for precise alignment and accelerated assembly in high-turnaround rental environments.

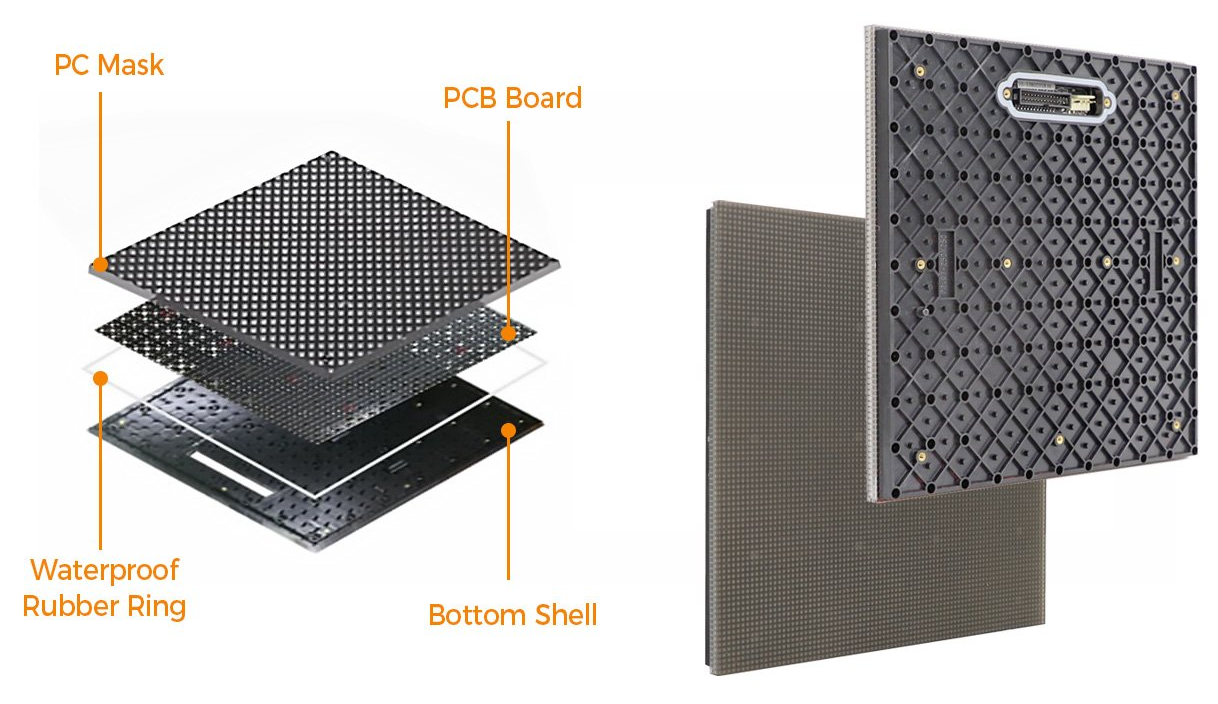

Better Design LED Module:
Optimized for 250x250mm LED modules, this interactive dance floor LED screen features an advanced anti-scratch mask with a convex surface design that significantly enhances wear resistance against heavy foot traffic and high heels. Additionally, an integrated protective rubber ring delivers superior waterproof sealing, shielding the internal indoor LED floor display components from accidental spills and moisture.

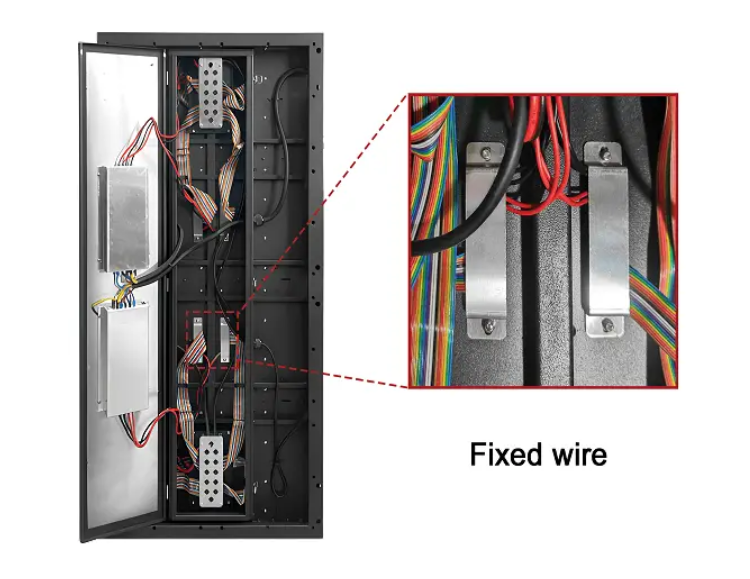

Good heat dissipation
Crafted from premium aluminum, the cabinet’s back cover and power box maximize structural durability and system stability. Aluminum’s exceptional thermal conductivity dissipates heat significantly faster than standard market materials. By rapidly cooling critical electronic components, this advanced thermal management extends the operational lifespan of the indoor LED floor display.

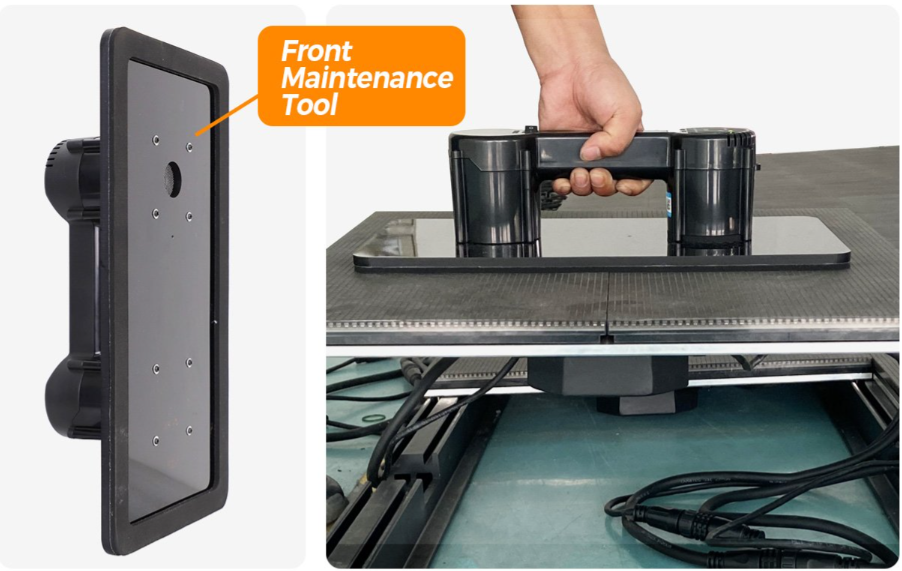

Front Service
Engineered for effortless maintenance, this indoor interactive LED floor display supports full front serviceability. Using a specialized magnetic vacuum tool, technicians can replace individual 250x250mm LED modules or access the internal power and data boxes from the top surface in under 10 seconds. This eliminates the need to dismantle the entire stage structure, drastically reducing downtime during live events and commercial productions.

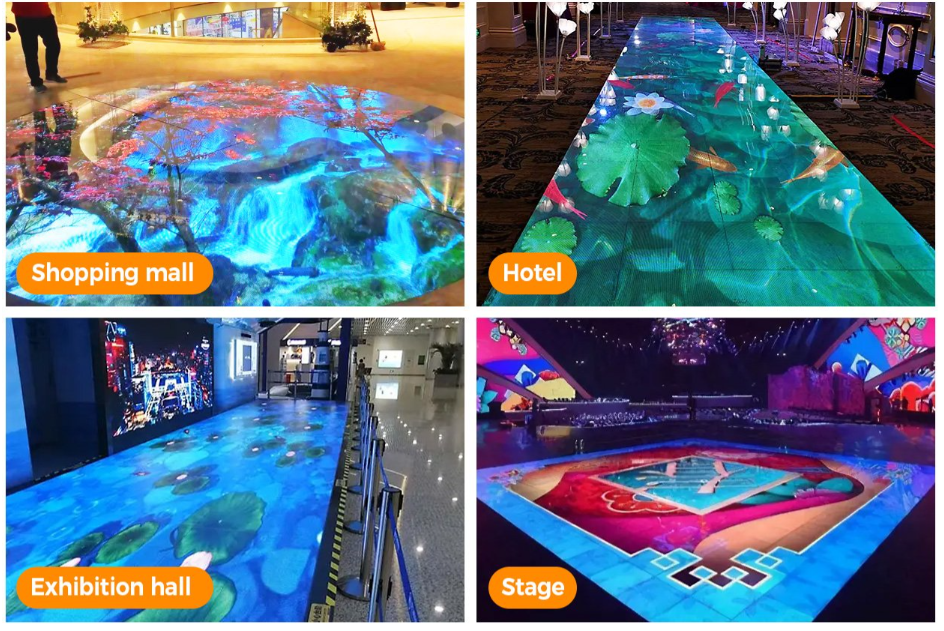

Wide Application
This versatile interactive dance floor LED screen is the ultimate visual solution for a wide range of indoor environments. Its high load-bearing capacity and responsive technology make it perfect for immersive stages, nightclubs, weddings, corporate product launches, and retail showrooms. Whether it is creating interactive walkways in commercial malls, dynamic backdrops for TV studios, or high-energy dance floors for entertainment venues, this indoor LED floor display delivers unforgettable, crowd-engaging experiences.

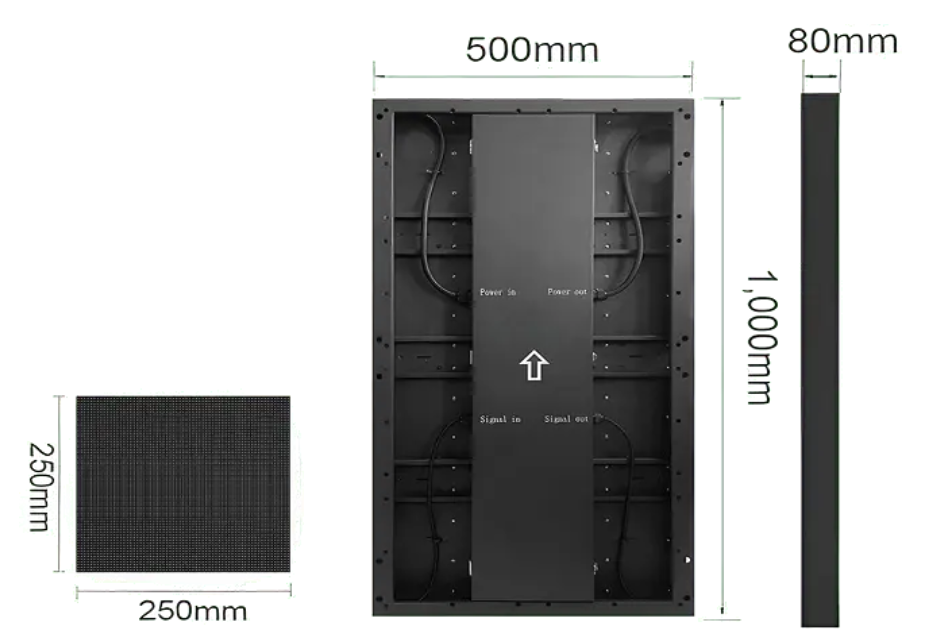

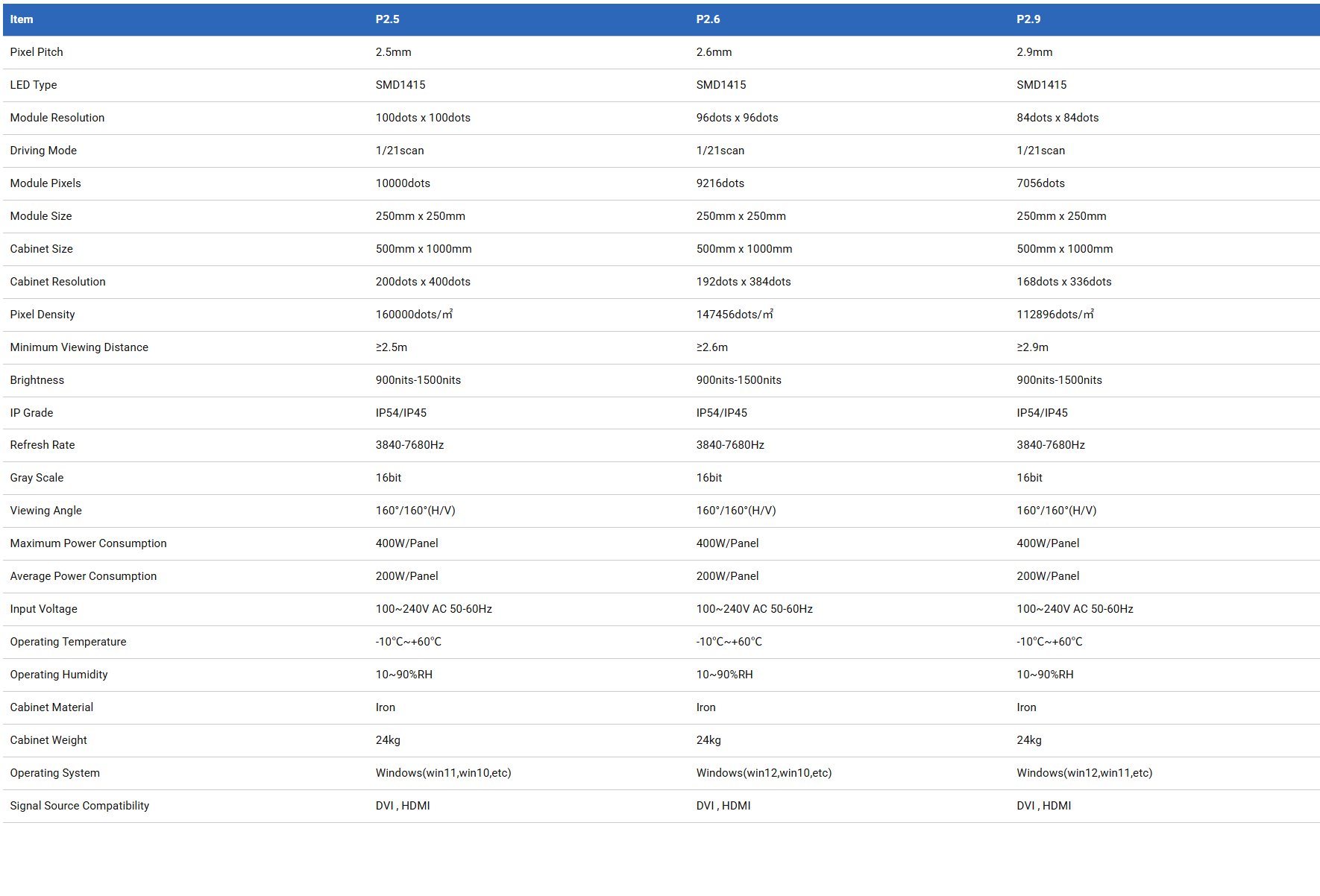

EA-iFloor Indoor 500x1000mm Floor LED Screen Parameter
| Pixel Pitch (mm) | P2.5 | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|
| Model | P2.5 | P2.6 | P2.97 | P3.91 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Density (Pixels/㎡) | 160,000 | 147,456 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/25 | 1/32 | 1/42 | 1/16 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 |
| Brightness (CD/㎡) | 2,500 | 2,500 | 2,500 | 2,500 |
| Viewing Angle (°) | 110 | 110 | 110 | 110 |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | ≤800 | ≤800 | ≤800 | ≤800 |
| Avg. Power Consumption (W/㎡) | ≤400 | ≤400 | ≤400 | ≤400 |
| Frame Frequency (Hz) | 50-60 | 50-60 | 50-60 | 50-60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP66(front), IP65(rear) | IP66(front), IP65(rear) | IP66(front), IP65(rear) | IP66(front), IP65(rear) |
