Sports Perimeter LED Display with Soft Foam Mask & Player Safety Protection
Features:
- Soft rubber mask LED module and top soft cushion design.
- Support bracket at the back and the angle can be adjusted.
- High brightness, more than 5,500 nits.
- Durable and weather-resistant design for outdoor stadium application.
- Die-casting magnesium aluminum or iron material is available.
- Various types are suitable, such as P4, P5, P8, P10, etc.
- Standard panel size is 960×960 mm, but customizable sizes are also available.
- Above 120° viewing angle.
- Show dynamic content, including animations, videos, etc.
- Remote control for easy content updating.
- Can be put on the ground as perimeter advertising boards and hung as a big stadium LED display.
Cabinet size: 1600X1032mm
Better cabinet design:

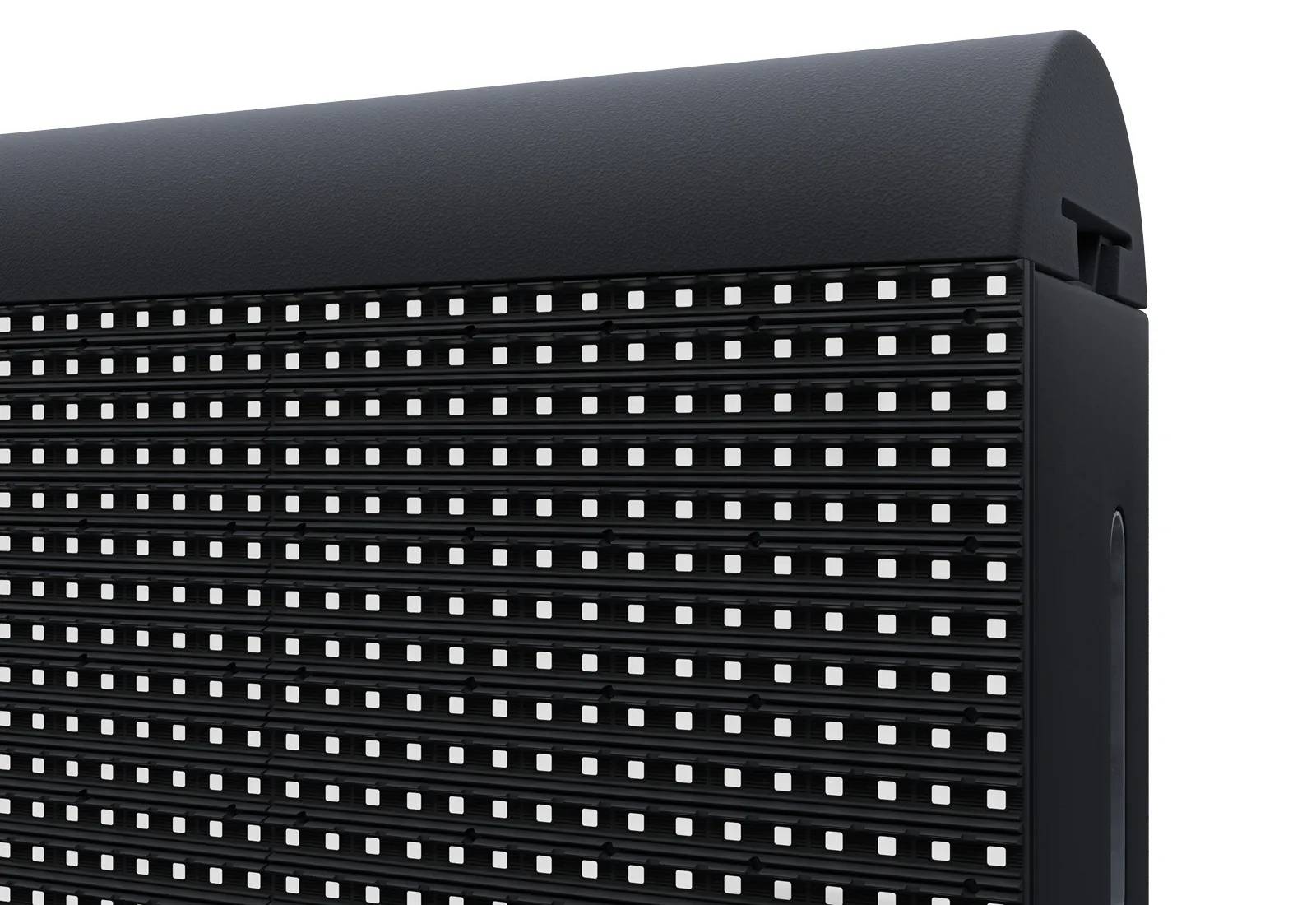

Our stadium perimeter LED display is designed with soft rubber mask on LED module.
The cushion on top of the board can ensure the safety of players and spectators.
And the bracket is adjustable.
So you can find the perfect angle for maximum visibility.
The standard board size is 960×960 mm.
But other sizes like 1280×960 mm can be also made.
It can be used as an arena LED screen on the ground and hung as a giant stadium LED display.
Stadium led board details:
- With up to 9.000 cd/m², the LED banner radiates clear, high-resolution advertising messages even in direct sunlight
- Thanks to the IP65 protection class, the LED advertising banner can withstand extreme weather conditions
- The soft-top cover minimises the risk of injury in the event of collisions and also protects the LEDs from damage caused by balls or other forces
- Gold wire standard for perfect signal transmission
- Thanks to the modular design and uncomplicated installation, no special equipment or skilled labour is required
- Includes all necessary components such as signal distribution boxes, fibre optic cables and power distribution boxes
Quick and easy installation

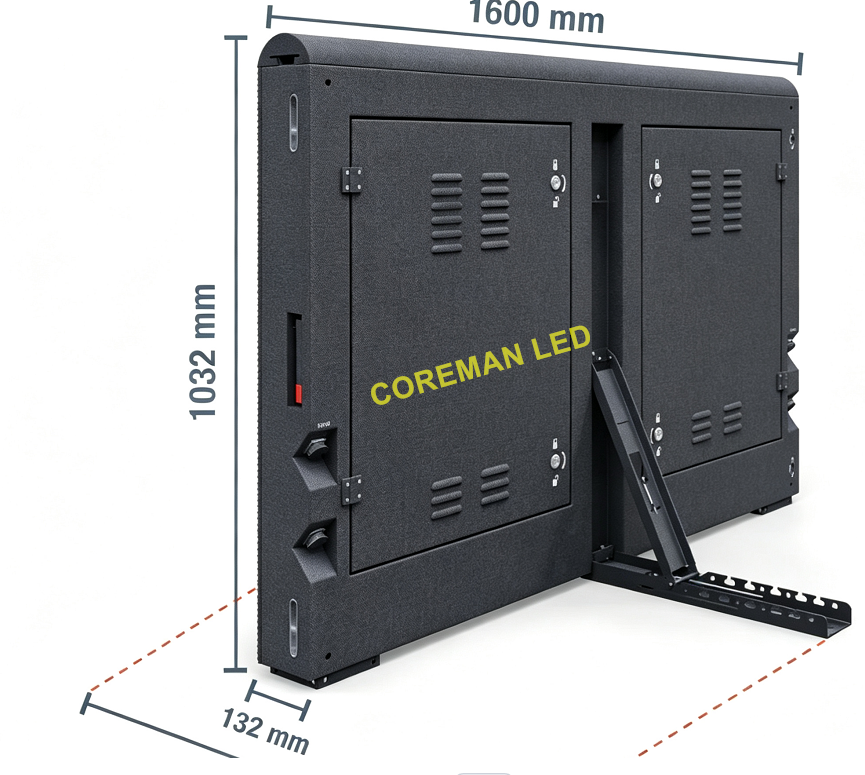

Installation is quick and easy, with no need for professional technicians or specialised equipment. With a cabinet size of 1.600 mm x 132 mm x 1.032 mm and a weight of 46 kg, the LED strip can be used flexibly. Each cabinet consists of 15.360 pixels (with a resolution of 160 x 96 px) and has a maximum current consumption of 900 W.

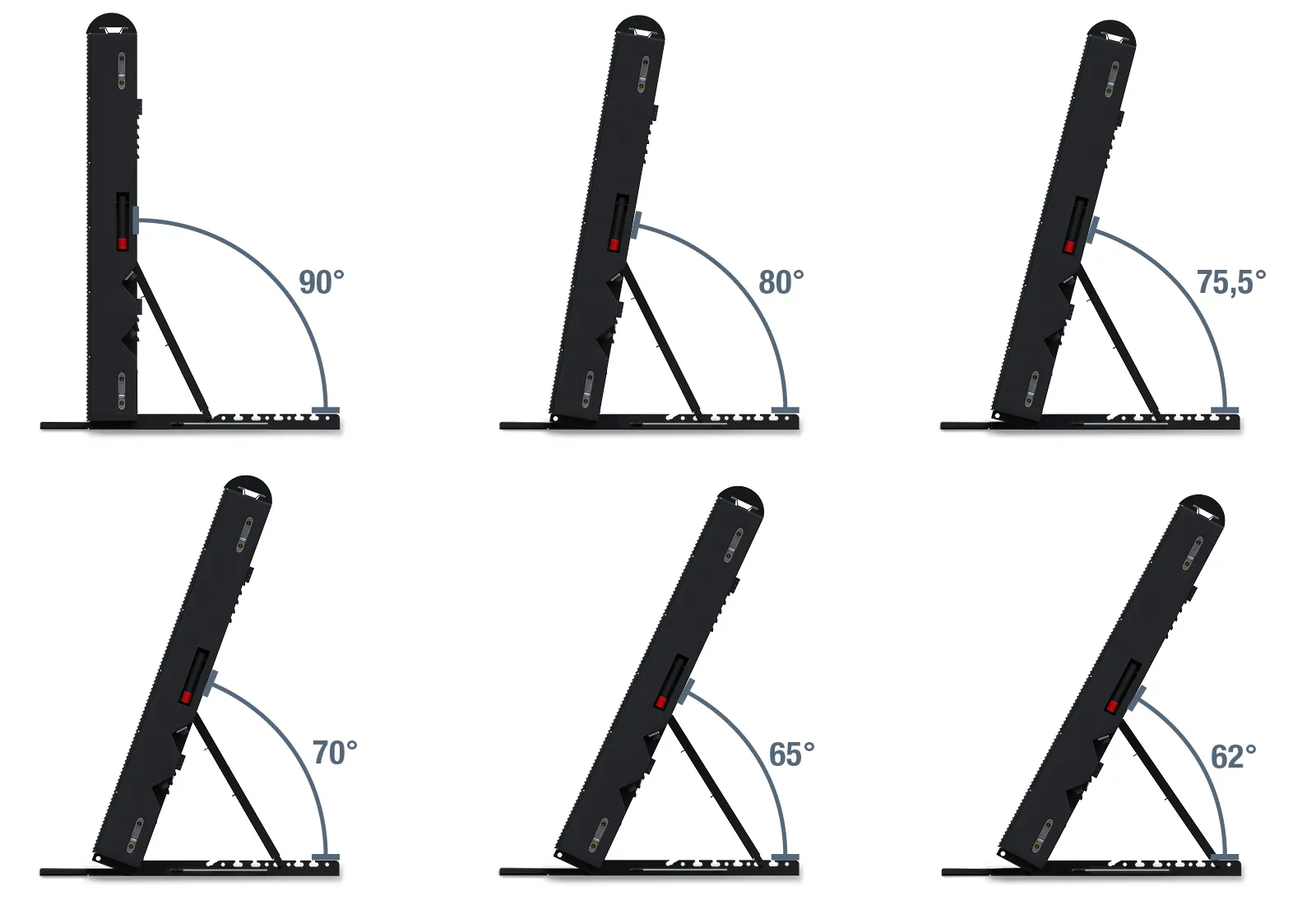

Adjustable Angle Design for Stadium Perimeter LED Display
This infographic illustrates the versatile installation angles of a professional Stadium Perimeter LED Display cabinet. The top and bottom rows show side profiles of the module as it is tilted across six distinct positions, from a perpendicular 90-degree setup to a more acute 62-degree angle. A robust, adjustable rear support stand enables smooth movement, with small locking notches along the base securing the screen at precisely the desired viewing angle. The design includes a protective top pad and a collapsible kickstand, showing how a single LED display solution can be customized to maximize audience visibility and provide the best viewing experience for both on-site fans and TV broadcast cameras in diverse sports arena environments.

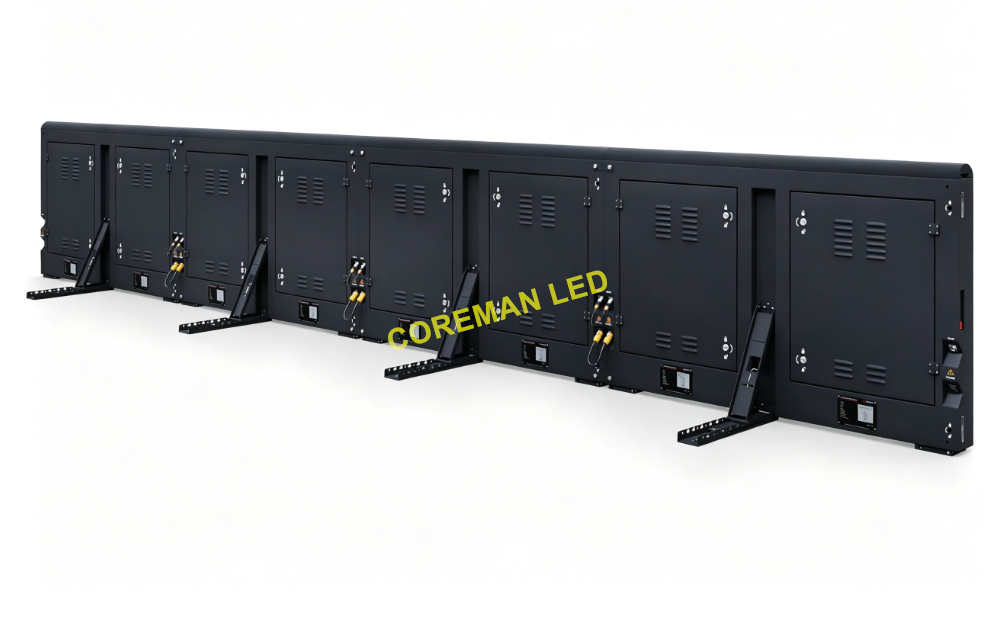

Seamless Cabinet Splicing & Quick-Lock Assembly
Our Stadium Perimeter LED Display features a high-precision cabinet structure designed for seamless splicing and rapid deployment around the pitch perimeter. Utilizing engineered quick-locking mechanisms and ultra-precise mechanical alignment pins, neighboring LED cabinets join seamlessly to eliminate visible vertical lines and gap shadows. This modular interlocking design ensures structural stability during high-impact sports matches while delivering a continuous, uninterrupted visual canvas for sponsor advertisements and dynamic live broadcasts.

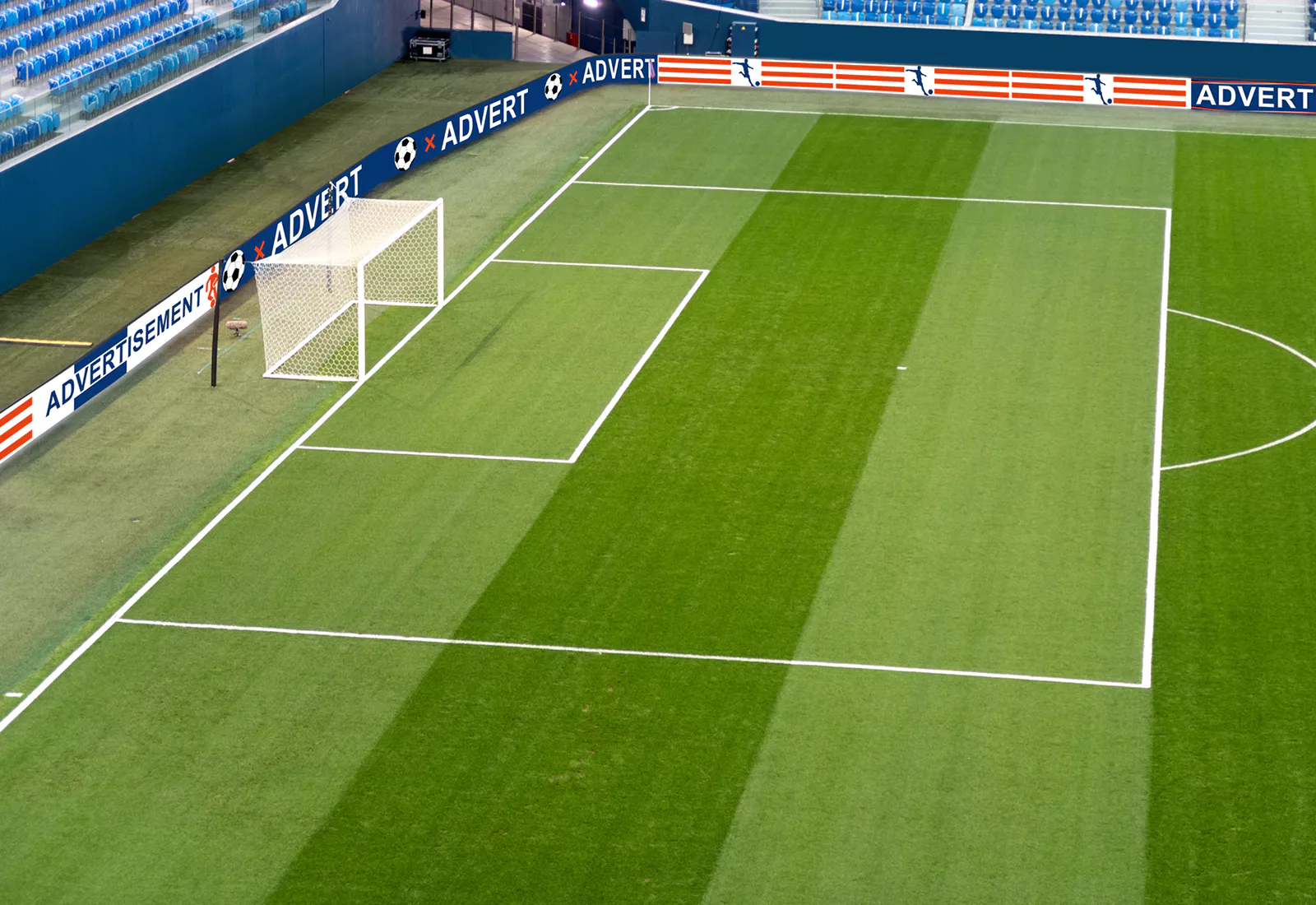

Wide Application Across World-Class Sports Arenas & Multi-Purpose Venues
Professional Football & Soccer Pitch Perimeters: Delivers high-refresh, broadcast-ready dynamic sponsor banners along the touchlines and goal areas.
Basketball, Volleyball & Indoor Arenas: Compact cabinet footprint and adjustable viewing angles make it ideal for court-side perimeter positioning.
Track & Field Stadiums: Long-run modular configuration provides uninterrupted perimeter advertising during major international track meets.
Cricket & Rugby Grounds: High-brightness panels with IP65 weather resistance perform reliably in vast, open-air stadium layouts.
Live Concerts & Event Rentals: Quick-disassembly locking mechanisms allow the cabinets to be easily reconfigured into standard ground-stacked or hung video walls for non-sporting events.
