CKD Series: Professional Concert Stage LED Backdrop for Grand Touring
Touring Performance Engineering
The CKD series is a high-performance concert stage LED backdrop engineered for rapid, large-scale deployment in the touring and live entertainment industry. Featuring an ultra-lightweight carbon fiber / magnesium alloy frame, this series significantly reduces the load-bearing requirements for overhead trussing, ensuring maximum safety for complex stage designs. With a 7680Hz ultra-high refresh rate and HDR10 support, the CKD series delivers flicker-free, cinema-grade visuals that meet the most demanding broadcast and live streaming standards.

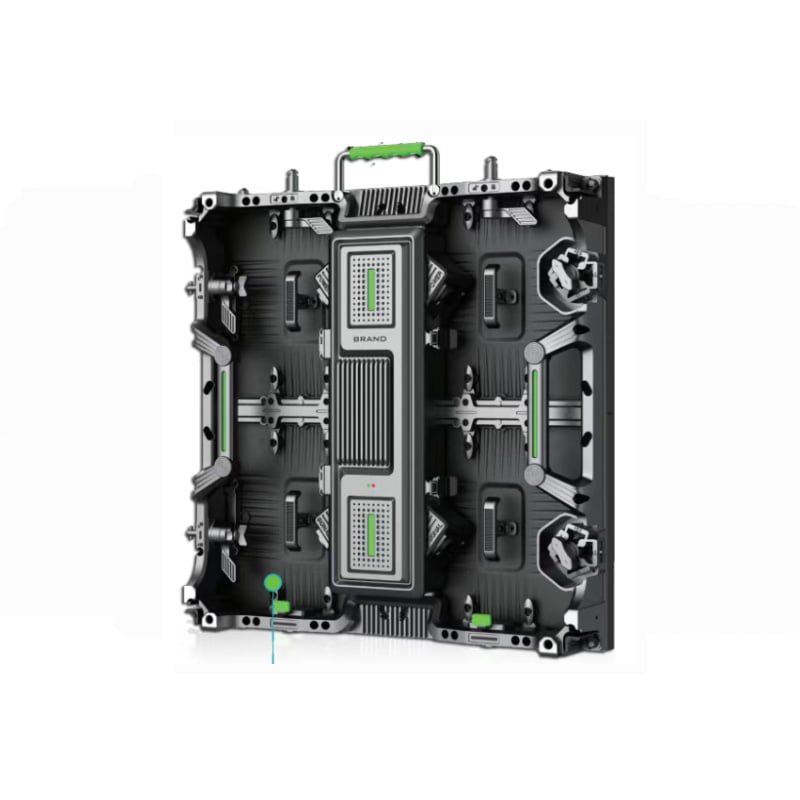

Ultra-Lightweight Rigging: Reduced cabinet weight (approx. 6kg per 500x500mm) for faster, safer concert stage LED backdrop installations.

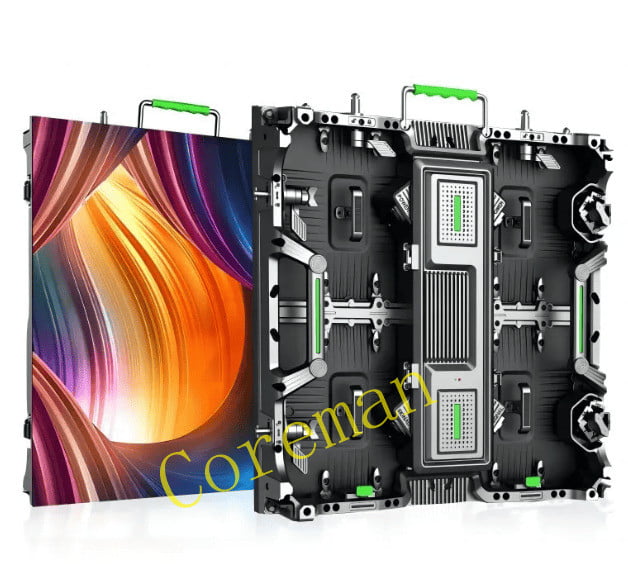

Broadcast Fidelity: 7680Hz refresh rate and 16-bit grayscale depth for perfect performance under professional UHD camera lenses.

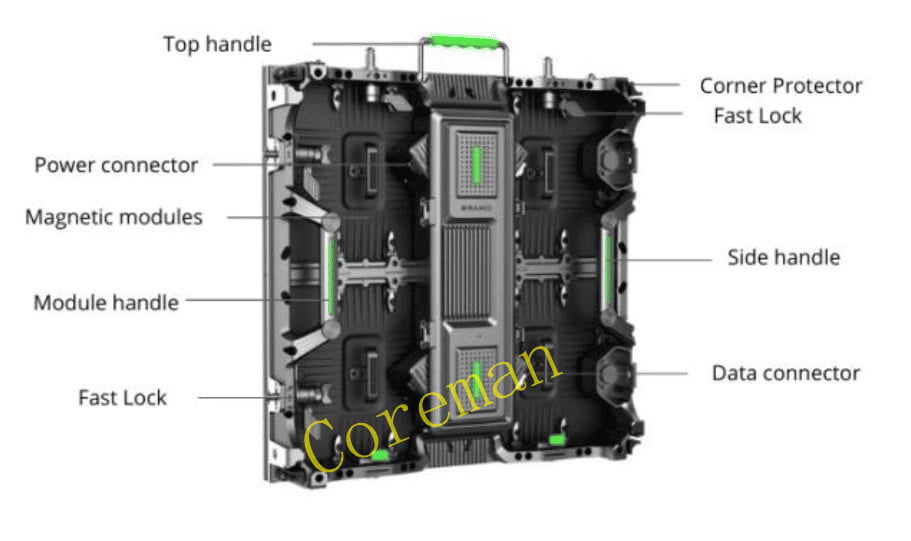

Modular Stability: Fully detachable power box and smart module design for 3-second “on-the-fly” maintenance during live shows.
Wind-Resistant Structure: Optional wind-venting mesh design and reinforced locking mechanisms for high-altitude outdoor concert rigging

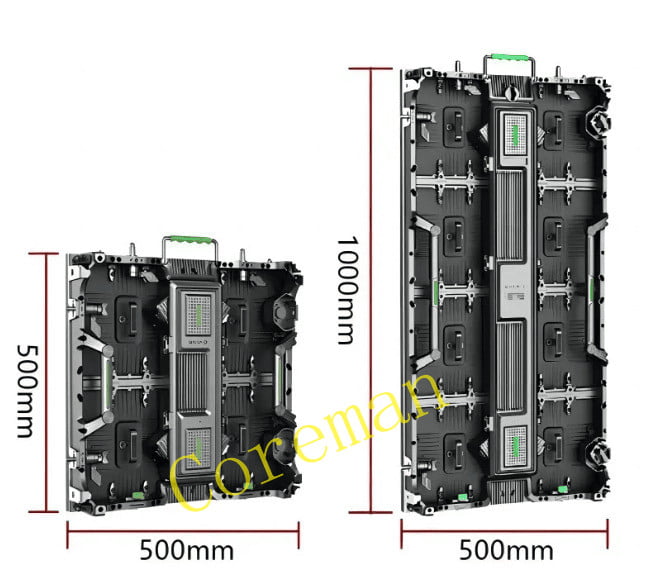

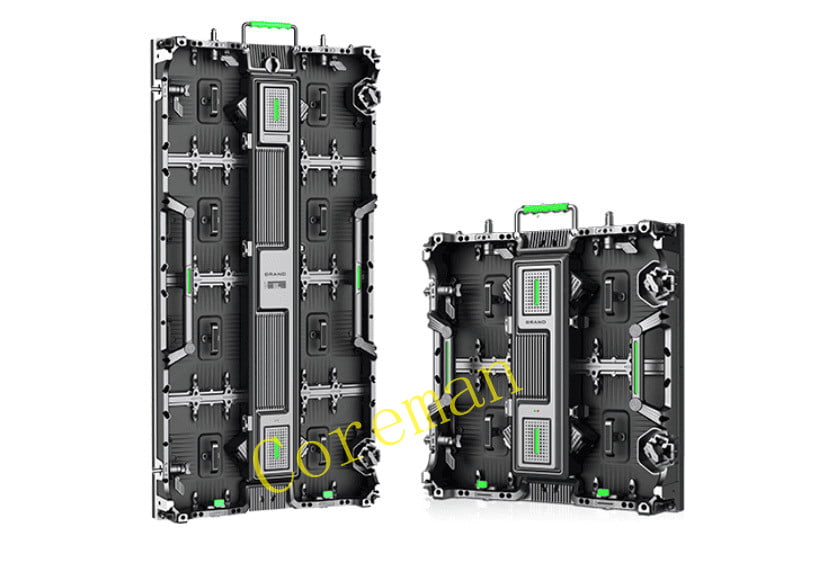

500X500mm and 500X1000mm two cabinet sizes options:

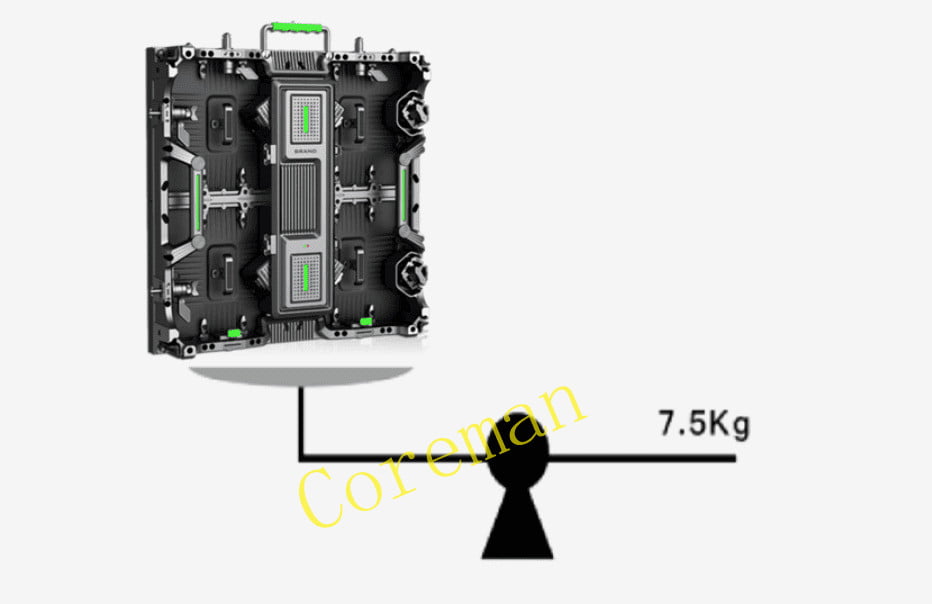

Ultra-Lightweight & Efficient:
Designed for maximum agility, this rental LED series features an ultra-lightweight cabinet that significantly reduces the burden of manual labor. Weighing in at a fraction of traditional screens, the 500×500mm and 500×1000mm die-cast aluminum panels allow for effortless one-man handling. With a slim 80mm profile, it not only saves warehouse space but also drastically cuts down on transportation and rigging costs, making it the ultimate choice for fast-paced event setups.

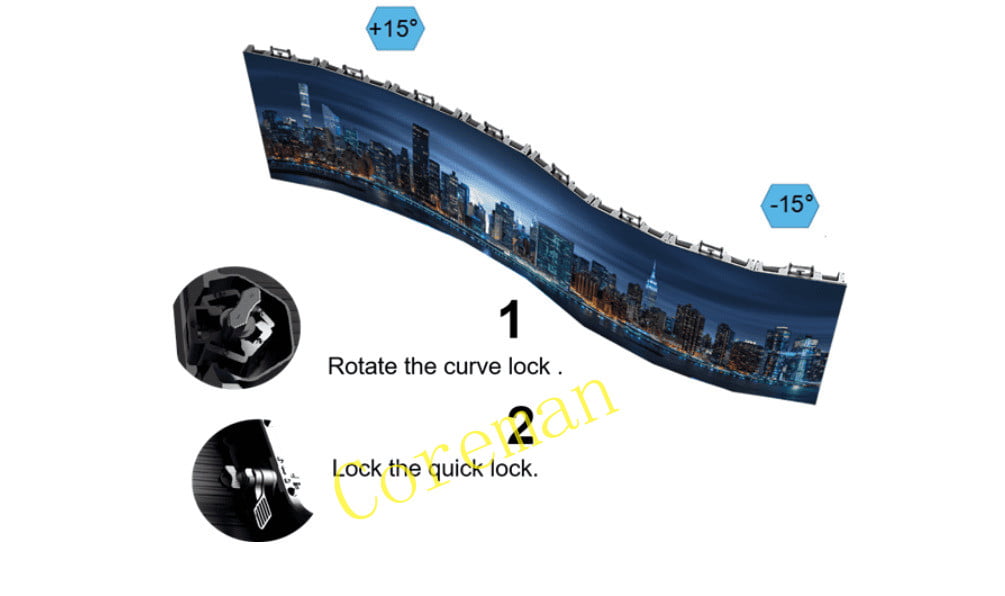

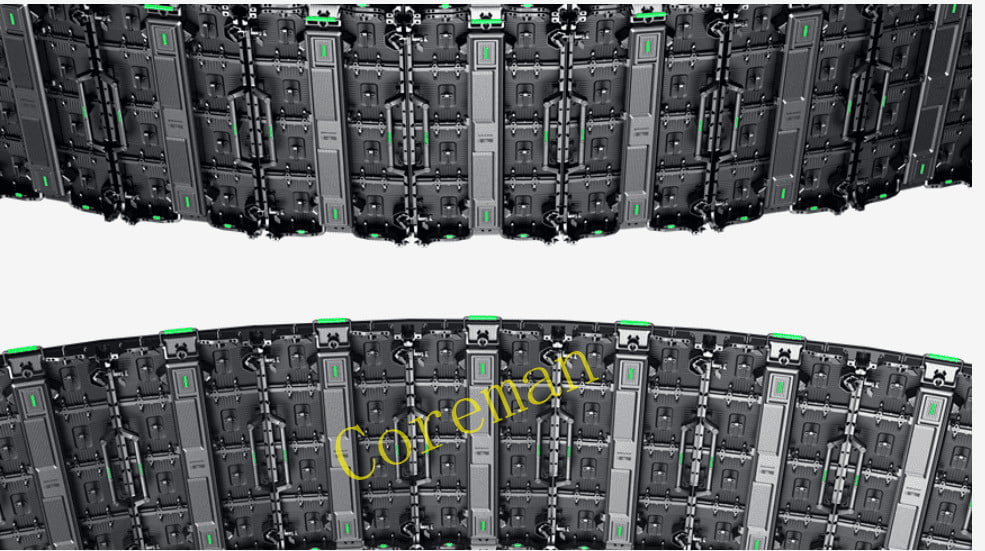

Curve and 90 degree design
Featuring a high-precision curve lock system ($\pm 10^\circ$), this design eliminates the operational frustrations of traditional locking mechanisms. The rotary control interface allows for ultra-fine adjustments, ensuring seamless curving and superior alignment. It’s engineered for intuitive use, enabling technicians to achieve the perfect angle with speed and surgical precision

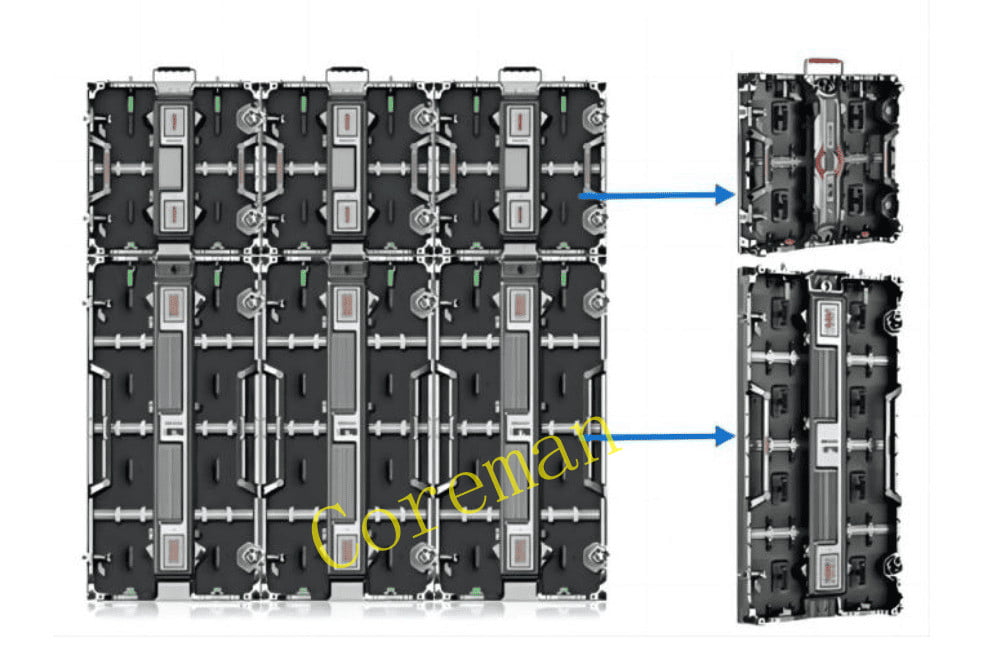

Seamless Modular Integration:
Engineered for ultimate versatility, the 500×500mm and 500×1000mm cabinets are fully compatible for seamless mixed splicing. This modular flexibility allows for creative screen configurations while maintaining superior surface flatness. Each panel is precision-machined to ensure tight alignment, delivering a flawless, gapless visual experience across the entire display.
